MC908LJ24CFUE - NXP

Description: MCU 8-bit HC08 CISC 24KB Flash 3.3V/5V 64-Pin PQFP Tray

Download MC908LJ24CFUE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MC908LJ24CFUE - NXP - PCB symbol
click to zoom
PCB Footprints

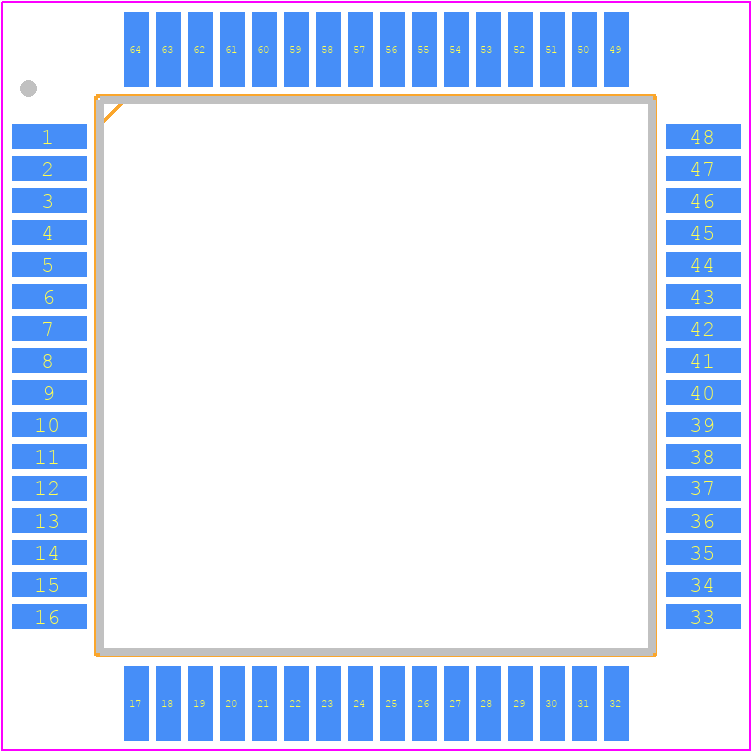

MC908LJ24CFUE - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - 64LD QFP (14X14)
click to zoom
3D Models
MC908LJ24CFUE - NXP - 3D model - Quad Flat Packages - 64LD QFP (14X14)
click to zoom

MC908LJ24CFUE Details

  • Manufacturer Part Number:

    MC908LJ24CFUE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    3

  • Bit Size:

    8

  • CPU Family:

    68HC08

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    QFP64,.66SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    768

  • ROM (words):

    24576

  • ROM Programmability:

    FLASH

  • Speed:

    8 MHz

  • Supply Current-Max:

    20 mA

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

MC908LJ24CFUE Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be used with the internal oscillator is 4 MHz. However, it's recommended to use a crystal oscillator for frequencies above 2 MHz for better stability and accuracy.
  • The watchdog timer can be configured using the WCR (Watchdog Control Register). Set the WCR to enable the watchdog timer, and then set the prescaler and timeout values using the WVR (Watchdog Value Register) and WPR (Watchdog Prescaler Register) respectively.
  • The COP timer is a safety feature that resets the microcontroller if it fails to reset the COP timer within a specified time period. This ensures that the microcontroller is operating properly and prevents it from getting stuck in an infinite loop.
  • The SCI module can be used for asynchronous serial communication. Configure the SCI control register (SCCR1) to set the baud rate, data bits, and stop bits. Then, use the SCI data register (SCDR) to transmit and receive data.
  • The reset pin is an active-low input that resets the microcontroller when pulled low. It can be used to reset the microcontroller externally, such as when a fault is detected or when a system reset is required.
