- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MC9S08DZ60AMLF
- Part Number MC9S08DZ60AMLF
- Manufacturer NXP
- Pin Count 48
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QFP50P900X900X160-48N-ren1
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
MC9S08DZ60AMLF Details
-
Manufacturer Part Number:
MC9S08DZ60AMLF
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Package Description:
LQFP-48
-
Country Of Origin:
Mainland China
-
ECCN Code:
3A991.A.2
-
HTS Code:
8542.31.00.01
-
Factory Lead Time:
13 Weeks
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
3
-
Has ADC:
YES
MC9S08DZ60AMLF Frequently Asked Questions (FAQs)
-
The maximum clock frequency that can be used with the internal oscillator is 20 MHz. However, it's recommended to use a crystal oscillator or an external clock source for more accurate and stable clocking.
-
To configure the ADC to convert analog signals from multiple channels, you need to use the ADC's scan mode. This mode allows you to convert multiple channels in a single conversion sequence. You can configure the ADC to scan through multiple channels by setting the ADCSC2 register's ADICLK bit to 1 and configuring the ADCSC1 register's ADICLK bit to select the desired channels.
-
The maximum current that can be sourced or sunk by the GPIO pins is 25 mA. However, it's recommended to limit the current to 10 mA or less to ensure reliable operation and to prevent overheating.
-
To implement a watchdog timer, you need to enable the COP (Computer Operating Properly) module and configure the COP timer to reset the microcontroller if it doesn't receive a 'feed' signal within a specified time period. You can do this by setting the COPCTL register's COPW bit to 1 and configuring the COP timer using the COPCTL register's COPCLK and COPRST bits.
-
The minimum voltage required to program the flash memory is 3.13 V. However, it's recommended to use a voltage of 3.3 V or higher to ensure reliable programming.
Trust Checks
System Verified
MC9S08DZ60AMLF Overview

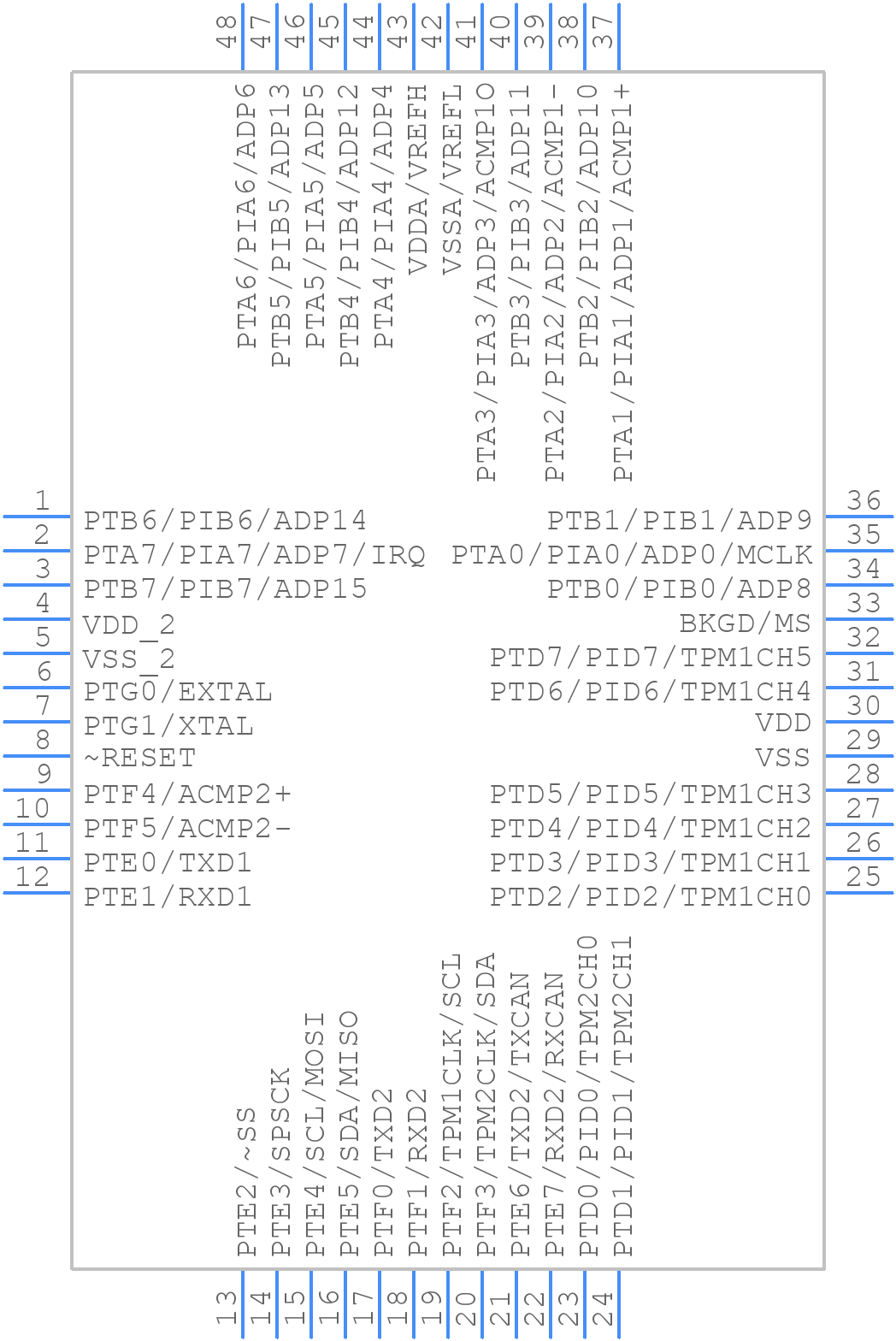

Use the download button to access the MC9S08DZ60AMLF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC9S0,
or try a keyword search, such as Microcontrollers
