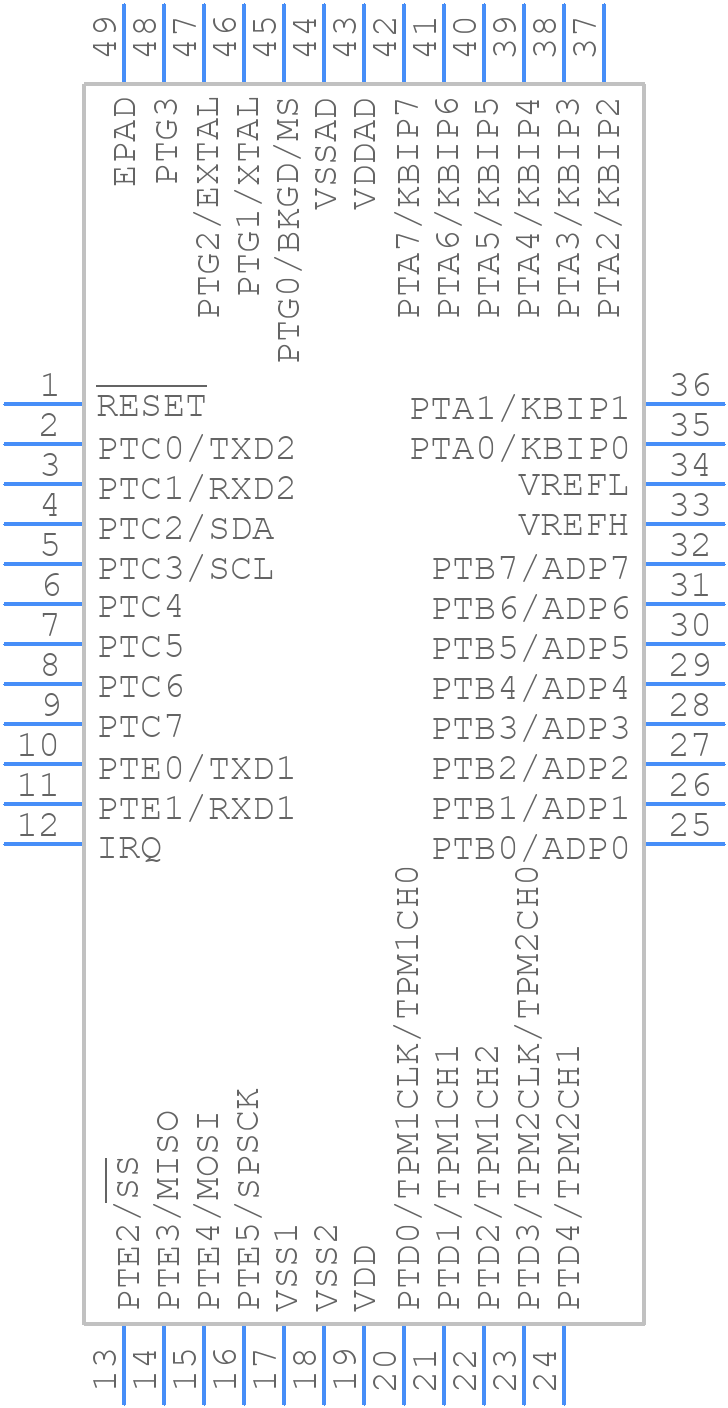

MC9S08GT16ACFDE - NXP

MC9S08GT16ACFDE Frequently Asked Questions (FAQs)

• What is the maximum clock frequency that can be used with the internal oscillator?
  The maximum clock frequency that can be used with the internal oscillator is 16 MHz. However, it's recommended to use a crystal oscillator or an external clock source for more accurate and stable clocking.
• How do I configure the ADC to convert analog signals from multiple channels?
  To configure the ADC to convert analog signals from multiple channels, you need to use the ADC's scan mode. This mode allows you to convert multiple channels in a sequence. You can configure the ADC to scan through multiple channels by setting the ADCSC2 register and enabling the ADCSC1[SCAN] bit.
• What is the purpose of the COP (Computer Operating Properly) watchdog timer?
  The COP watchdog timer is a safety feature that resets the microcontroller if it fails to periodically reset the COP timer. This ensures that the microcontroller is operating properly and prevents it from getting stuck in an infinite loop or malfunctioning.
• How do I use the SCI (Serial Communication Interface) module for asynchronous communication?
  To use the SCI module for asynchronous communication, you need to configure the SCI control registers (SCIC1, SCIC2, and SCIC3) to set the baud rate, data bits, parity, and stop bits. You also need to enable the SCI transmitter and receiver by setting the SCIC1[TXE] and SCIC1[RXE] bits, respectively.
• What is the purpose of the TPM (Timer/PWM Module) and how do I use it?
  The TPM module is a 16-bit timer that can be used for various applications such as generating PWM signals, measuring pulse widths, and counting events. To use the TPM module, you need to configure the TPM control registers (TPMCTL0 and TPMCTL1) to set the timer mode, clock source, and prescaler. You can also use the TPM module to generate PWM signals by setting the TPMC0V and TPMC1V registers.
