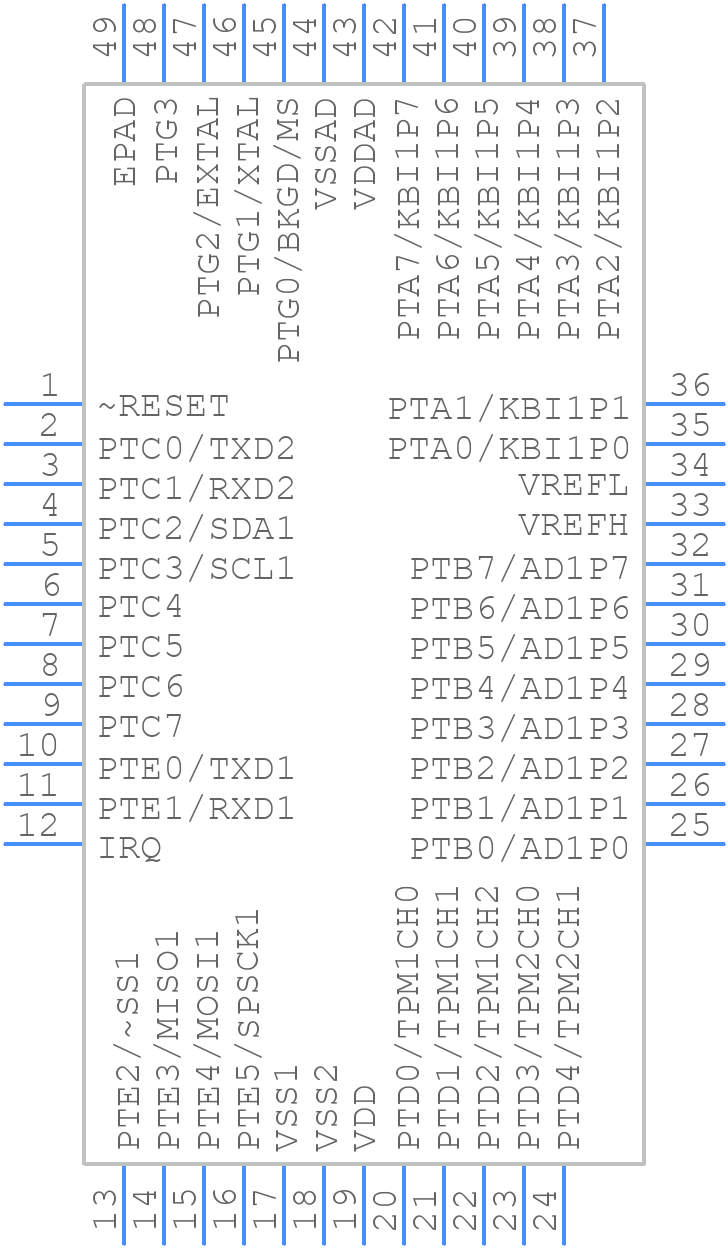

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MC9S08GT32ACFDER
- Part Number MC9S08GT32ACFDER
- Manufacturer NXP
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QFN50P700X700X100-49N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
MC9S08GT32ACFDER Details
-
Manufacturer Part Number:
MC9S08GT32ACFDER
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8542.31.00.01
-
Factory Lead Time:
13 Weeks
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
3
-
Has ADC:
YES
-
Bit Size:
8
MC9S08GT32ACFDER Frequently Asked Questions (FAQs)
-
The MC9S08GT32ACFDER can operate from -40°C to 105°C, but it's recommended to operate within -20°C to 85°C for optimal performance.
-
The internal clock source can be configured using the SYNR and REFS registers. The SYNR register sets the clock source, and the REFS register sets the clock frequency. Refer to the device's reference manual for more information.
-
The maximum current consumption of the MC9S08GT32ACFDER is around 20mA at 2.7V and 4MHz, but this can vary depending on the operating frequency, voltage, and peripheral usage.
-
The ADC module can be used by configuring the ADCSC1 and ADCSC2 registers to select the channel, mode, and clock source. Then, start the conversion using the ADGO bit, and read the result from the ADCRH and ADCRL registers.
-
Yes, the MC9S08GT32ACFDER has two UART modules (UART0 and UART1) that can be used for serial communication. Configure the UART registers (UARTx_C1, UARTx_C2, and UARTx_S1) to set the baud rate, data bits, and stop bits, and use the UARTx_D register to transmit and receive data.
