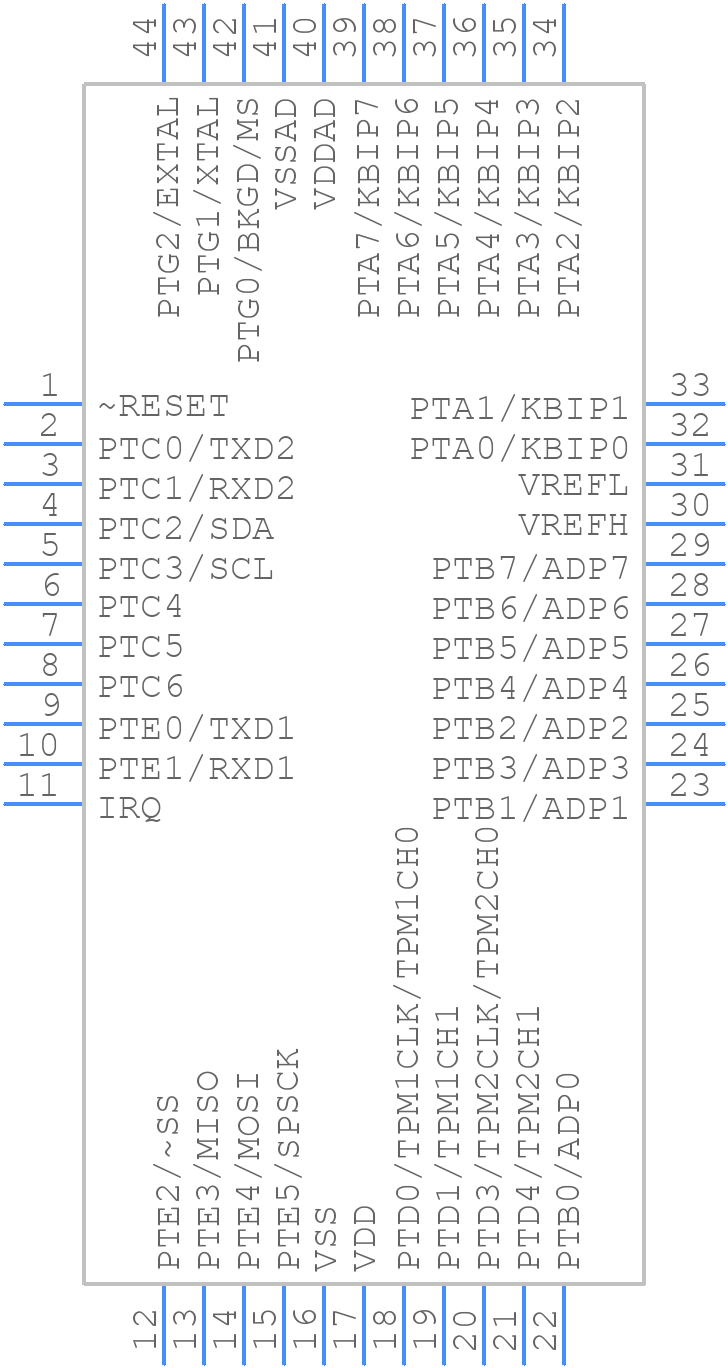

Symbol

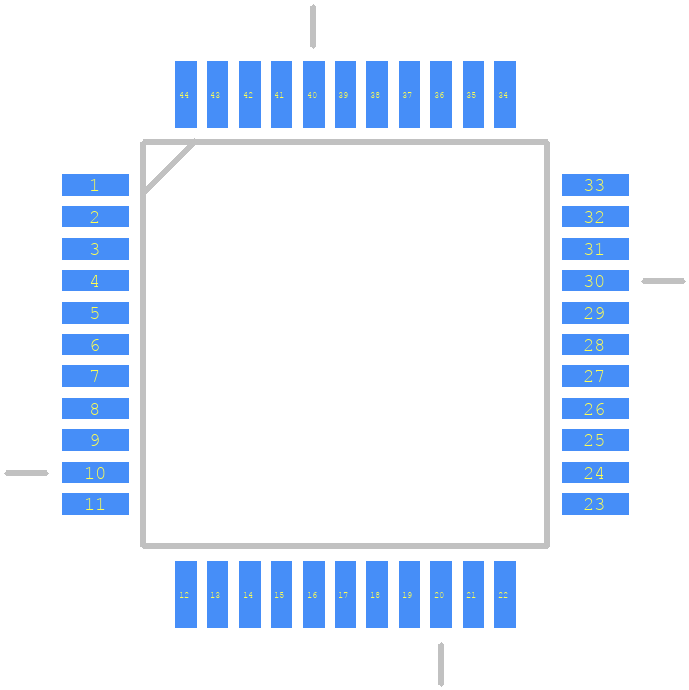

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MC9S08GT8ACFBER
- Part Number MC9S08GT8ACFBER
- Manufacturer NXP
- Pin Count 44
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QFP80P1320X1320X245-44N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
MC9S08GT8ACFBER Details
-
Manufacturer Part Number:
MC9S08GT8ACFBER
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Package Description:
10 X 10 MM, 2 MM HEIGHT, 0.80 MM PITCH, ROHS COMPLIANT, QFP-44
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8542.31.00.01
-
Factory Lead Time:
13 Weeks
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
3
-
Has ADC:
YES
MC9S08GT8ACFBER Frequently Asked Questions (FAQs)
-
The maximum clock frequency that can be used with the internal oscillator is 16 MHz. However, it's recommended to use a crystal oscillator or an external clock source for more accurate and stable clocking.
-
To configure the ADC to convert analog signals from multiple channels, you need to use the ADC's scan mode. This mode allows you to convert multiple channels in a single conversion sequence. You can configure the ADC to scan through multiple channels by setting the ADCSC2 register accordingly.
-
The COP watchdog timer is a safety feature that resets the microcontroller if it fails to periodically reset the COP timer. This ensures that the microcontroller is operating properly and prevents it from getting stuck in an infinite loop or malfunctioning.
-
To use the SCI module for asynchronous serial communication, you need to configure the SCI module to operate in asynchronous mode by setting the SCI control register (SCIC1) accordingly. You also need to set the baud rate, data bits, parity, and stop bits according to your serial communication requirements.
-
The TPM module is a 16-bit timer that can be used for various purposes such as generating PWM signals, measuring pulse widths, and counting events. It can also be used as a timer for generating time delays or as a counter for counting external events.
