- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MC9S08JM8CLD
- Part Number MC9S08JM8CLD
- Manufacturer NXP
- Pin Count 44
- Part Category Integrated Circuit
- Package Category Other

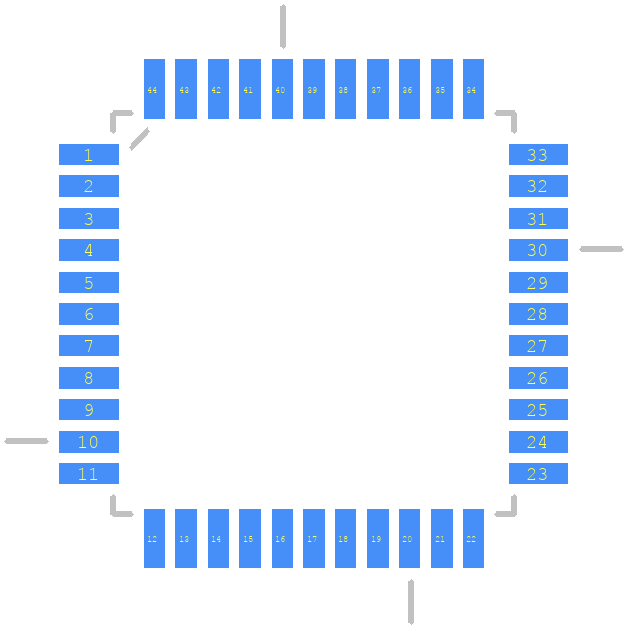

- Footprint Name Other - QFP80P1200X1200X160-44N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
MC9S08JM8CLD Details
-
Manufacturer Part Number:
MC9S08JM8CLD
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
LQFP-44
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8542.31.00.01
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
0
-
Has ADC:
YES
-
Bit Size:
8
MC9S08JM8CLD Frequently Asked Questions (FAQs)
-
The maximum clock frequency that can be used with the internal oscillator is 20 MHz, but it's recommended to use a crystal oscillator for frequencies above 8 MHz for better accuracy and stability.
-
To configure the watchdog timer, set the WDT_CVAL register to the desired timeout value, enable the watchdog timer by setting the WDT_EN bit in the WDT_CS1 register, and make sure to periodically refresh the watchdog timer by writing a new value to the WDT_CVAL register before the timeout expires.
-
No, the internal voltage regulator is only intended to power the MCU itself and should not be used to power external components. Instead, use an external voltage regulator to power external components.
-
To implement a low-power mode, use the STOP or WAIT instructions to put the MCU into a low-power state, and configure the clock gating registers to disable clocks to unused peripherals. Additionally, consider using the MCU's built-in low-power modes, such as the Very Low Power (VLP) mode.
-
The maximum current that can be sourced or sunk by the GPIO pins is 25 mA, but it's recommended to limit the current to 10 mA or less to ensure reliable operation and prevent damage to the MCU.
Trust Checks
System Verified
MC9S08JM8CLD Overview

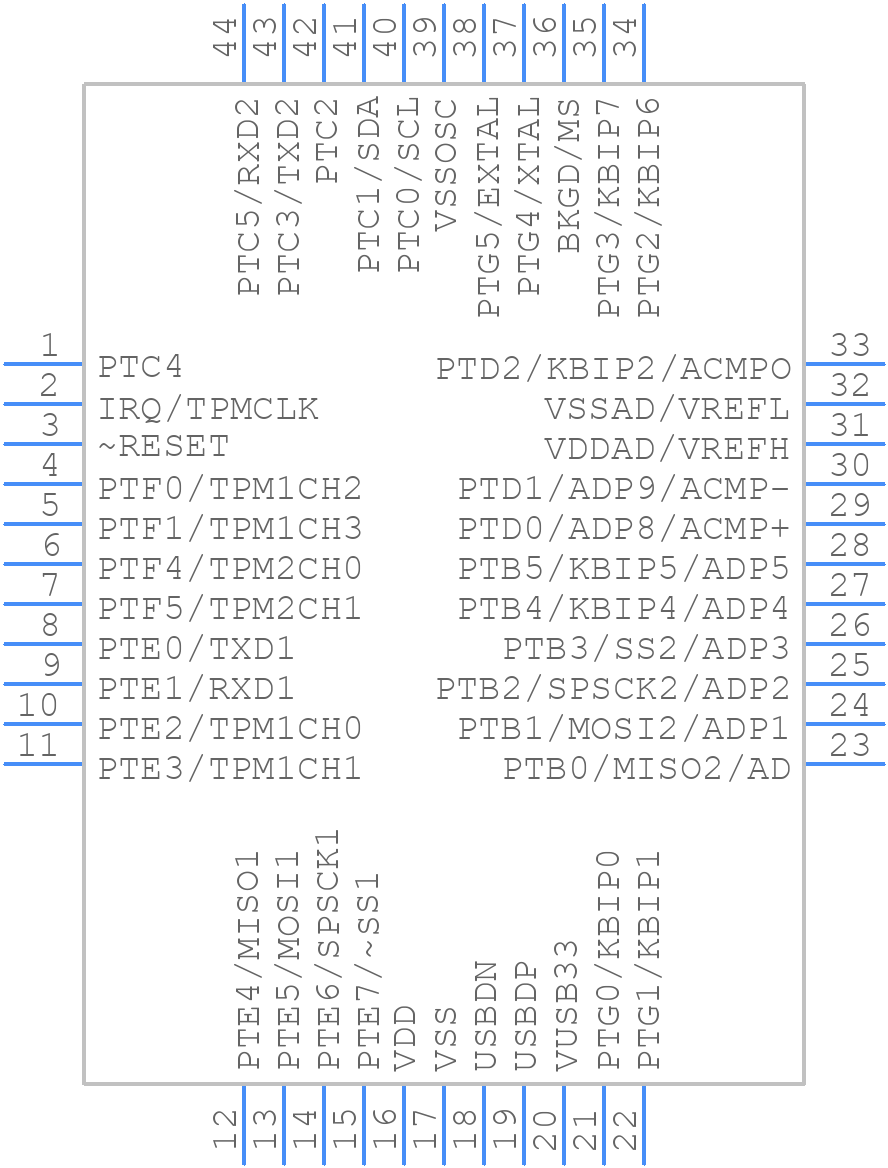

Use the download button to access the MC9S08JM8CLD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC9S0,
or try a keyword search, such as Microcontrollers
