- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MC9S08LL8CLF
- Part Number MC9S08LL8CLF
- Manufacturer NXP
- Pin Count 48
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QFP50P900X900X160-48N-ren1
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
MC9S08LL8CLF Details
-
Manufacturer Part Number:
MC9S08LL8CLF
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
7 X 7 MM, 1.40 MM HEIGHT, ROHS COMPLIANT, MS-026BBC, LQFP-48
-
Country Of Origin:
Mainland China
-
ECCN Code:
3A991.A.2
-
HTS Code:
8542.31.00.01
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
3
-
Has ADC:
YES
-
Bit Size:
8
MC9S08LL8CLF Frequently Asked Questions (FAQs)
-
The maximum clock frequency that can be used with the internal oscillator is 4 MHz. However, it's recommended to use a crystal oscillator or an external clock source for frequencies above 2 MHz for better accuracy and stability.
-
To configure the WDT to reset the microcontroller, you need to set the WDT enable bit (WDT_E) in the WDT control register (WDT_CTRL) and set the WDT timeout period using the WDT timeout register (WDT_TOVAL). You can also use the WDT prescaler register (WDT_PRESC) to adjust the timeout period.
-
No, the ADC can only measure voltages between 0V and VDD. If you need to measure voltages above VDD, you'll need to use an external voltage divider or attenuation circuit to bring the voltage within the ADC's input range.
-
The MC9S08LL8CLF has several low-power modes, including Stop, Wait, and VLPR (Very Low Power Run) modes. You can enter these modes by setting the appropriate bits in the System Options Register (SYOPT) and the Power Management Control Register (PMC_CTRL). You'll also need to configure the clock gating and peripheral shutdown to minimize power consumption.
-
The maximum current that can be sourced or sunk by the GPIO pins is 25 mA. However, it's recommended to limit the current to 10 mA or less to ensure reliable operation and prevent overheating.
Trust Checks
System Verified
MC9S08LL8CLF Overview

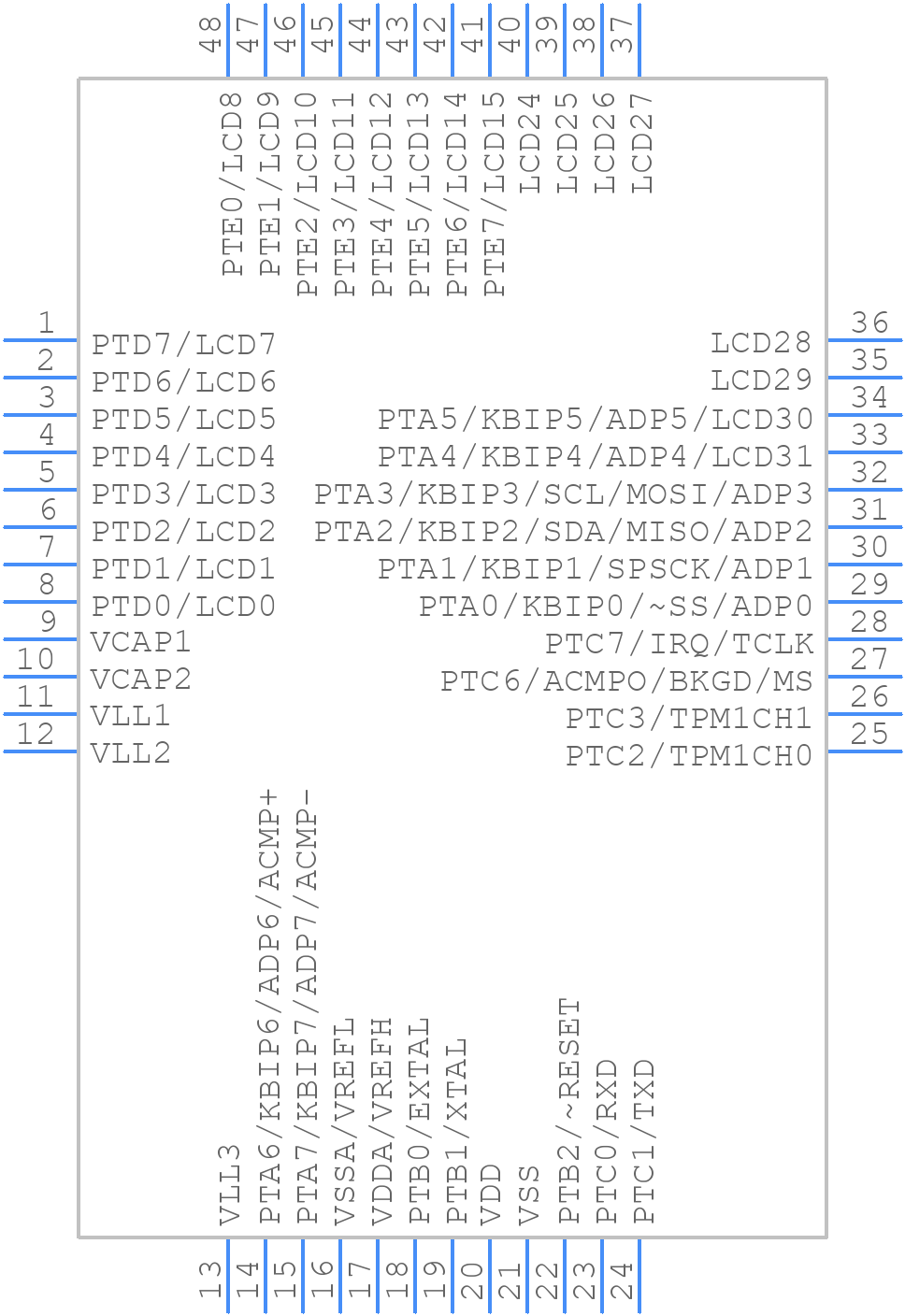

Use the download button to access the MC9S08LL8CLF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC9S0,
or try a keyword search, such as Microcontrollers
