MC9S08PA4AVTG - NXP

Description: 8-bit Microcontrollers - MCU S08PA 8bit MCU S08 core 4KB FLS TSSOP16

Download MC9S08PA4AVTG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

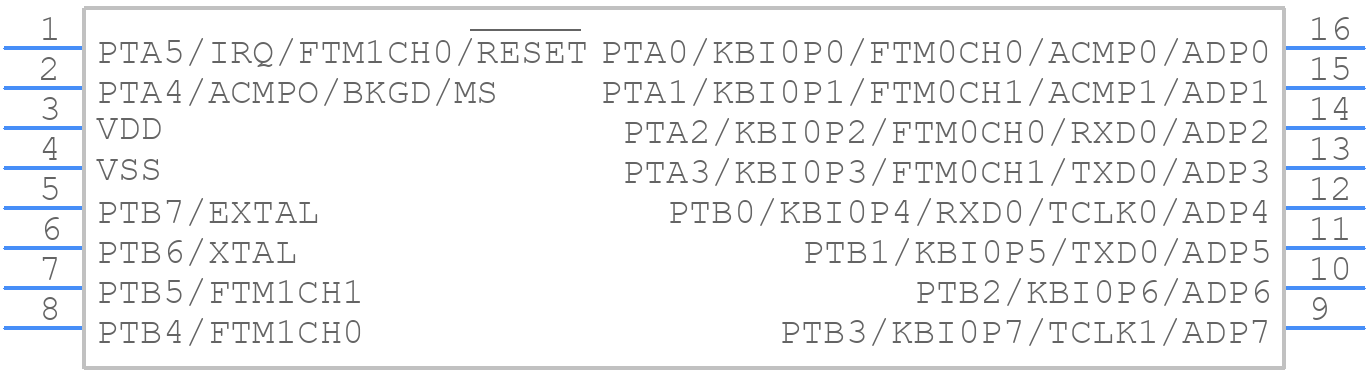

MC9S08PA4AVTG - NXP - PCB symbol
click to zoom
PCB Footprints
MC9S08PA4AVTG - NXP PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP16
click to zoom
3D Models
MC9S08PA4AVTG - NXP - 3D model - Small Outline Packages - TSSOP16
click to zoom

MC9S08PA4AVTG Details

  • Manufacturer Part Number:

    MC9S08PA4AVTG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-16

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Has ADC:

    YES

  • Bit Size:

    8

  • Clock Frequency-Max:

    20 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    14

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • ROM Programmability:

    FLASH

  • Speed:

    20 MHz

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

MC9S08PA4AVTG Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be used with the internal oscillator is 20 MHz.
  • To configure the watchdog timer to reset the microcontroller, set the WDT_C1[WDT] bit to 1 and the WDT_C1[WDTS] bit to 0. Then, set the WDT_C2[WDTOF] bit to 1 to enable the watchdog timer.
  • The VLLS mode is a low-power mode that reduces power consumption to a minimum by shutting down the CPU, peripherals, and most of the internal voltage regulators. It is used to minimize power consumption when the microcontroller is not in use.
  • To use the ADC, configure the ADC_SC1[ADICLK] bits to select the clock source, set the ADC_SC2[ADTRG] bit to 1 to enable the ADC, and then read the converted digital value from the ADC_R[ADCH] register.
  • The COP watchdog timer is a safety feature that resets the microcontroller if it fails to periodically reset the COP timer. This ensures that the microcontroller is operating properly and prevents it from getting stuck in an infinite loop.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MC9S08PA4AVTG Overview

Use the download button to access the MC9S08PA4AVTG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC9S0, or try a keyword search, such as Microcontrollers

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
