MC9S08PL16SCTJ - NXP

Description: NXP - MC9S08PL16SCTJ - 8 Bit MCU, S08 Family S08P Series Microcontrollers, 20 MHz, 16 KB, 1 KB, 20 Pins, TSSOP

Download MC9S08PL16SCTJ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

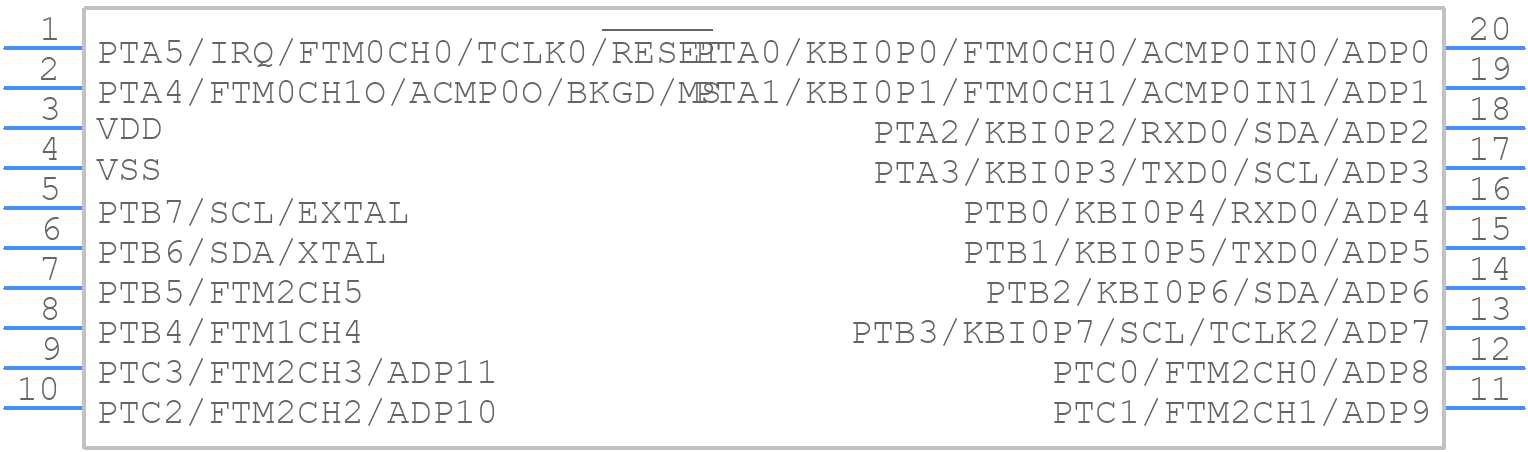

MC9S08PL16SCTJ - NXP - PCB symbol
click to zoom
PCB Footprints
MC9S08PL16SCTJ - NXP PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP20 (SOT360-2)
click to zoom
3D Models
MC9S08PL16SCTJ - NXP - 3D model - Small Outline Packages - TSSOP20 (SOT360-2)
click to zoom

MC9S08PL16SCTJ Details

  • Manufacturer Part Number:

    MC9S08PL16SCTJ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    40

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

MC9S08PL16SCTJ Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the MC9S08PL16SCTJ is 20 MHz, but it can be overclocked to 24 MHz with some limitations.
  • The internal clock source of the MC9S08PL16SCTJ can be configured using the SYNR and REFS registers in the System Options Register (SOR) module. The SYNR register sets the clock source, and the REFS register sets the clock frequency.
  • The VLLS mode is a low-power mode that reduces the power consumption of the MC9S08PL16SCTJ to a minimum. In this mode, the CPU, peripherals, and most internal clocks are disabled, and the device can only be woken up by an external interrupt or a reset.
  • The ADC module in the MC9S08PL16SCTJ can be used to convert analog signals to digital values. The ADC module is configured using the ADCSC1 and ADCSC2 registers, and the conversion result is stored in the ADCRH and ADCRL registers.
  • The maximum current that can be sourced or sunk by the GPIO pins of the MC9S08PL16SCTJ is 25 mA. However, the total current sourced or sunk by all GPIO pins should not exceed 100 mA.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

MC9S08PL16SCTJ Overview

Use the download button to access the MC9S08PL16SCTJ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC9S0, or try a keyword search, such as Microcontrollers

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
