The maximum clock frequency of the MC9S08PL60CQH is 20 MHz.
The MC9S08PL60CQH has 60 KB of flash memory.
The operating voltage range of the MC9S08PL60CQH is 2.7V to 5.5V.
Yes, the MC9S08PL60CQH has a 12-bit, 11-channel analog-to-digital converter (ADC).
Yes, the MC9S08PL60CQH has several low-power modes, including Stop, Wait, and Low-Power Run, to reduce power consumption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MC9S08PL60CQH Overview

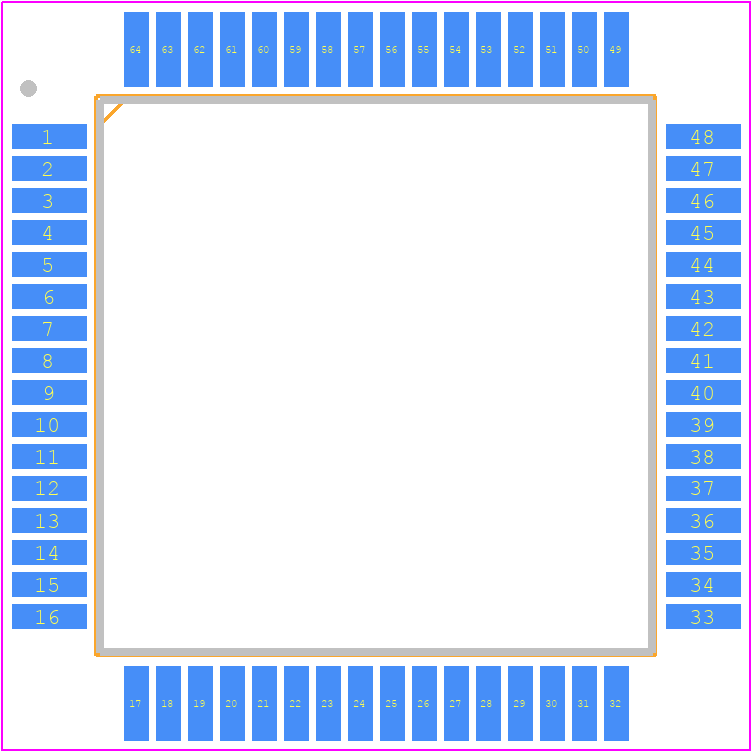

Use the download button to access the MC9S08PL60CQH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC9S0,
or try a keyword search, such as Microcontrollers
