- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MC9S08QE16CLC
- Part Number MC9S08QE16CLC
- Manufacturer NXP
- Pin Count 32
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QFP80P900X900X160-32N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
MC9S08QE16CLC Details
-
Manufacturer Part Number:
MC9S08QE16CLC
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Country Of Origin:
Mainland China
-
ECCN Code:
3A991.A.2
-
HTS Code:
8542.31.00.01
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
0
-
Has ADC:
YES
-
Bit Size:
8
-
Boundary Scan:
NO
MC9S08QE16CLC Frequently Asked Questions (FAQs)
-
The maximum clock frequency that can be used with the internal oscillator is 20 MHz. However, it's recommended to use a crystal oscillator or an external clock source for more accurate and stable clocking.
-
To configure the ADC to convert analog signals from multiple channels, you need to use the ADC's scan mode. This mode allows you to convert multiple channels in a sequence. You need to configure the ADC's control register to select the channels, and then use the ADC's scan mode to convert the channels in sequence.
-
The maximum current that can be sourced or sunk by the GPIO pins is 25 mA. However, it's recommended to limit the current to 10 mA or less to ensure reliable operation and to prevent overheating.
-
To use the watchdog timer to reset the microcontroller in case of a fault, you need to configure the watchdog timer to generate a reset signal if it is not serviced within a certain time period. You can do this by setting the watchdog timer's control register to enable the reset function, and then loading the watchdog timer with a time-out value.
-
The COP module is a watchdog timer that monitors the microcontroller's operation and resets the device if it fails to respond within a certain time period. This is useful for detecting and recovering from software faults or hangs.
Trust Checks
System Verified
MC9S08QE16CLC Overview

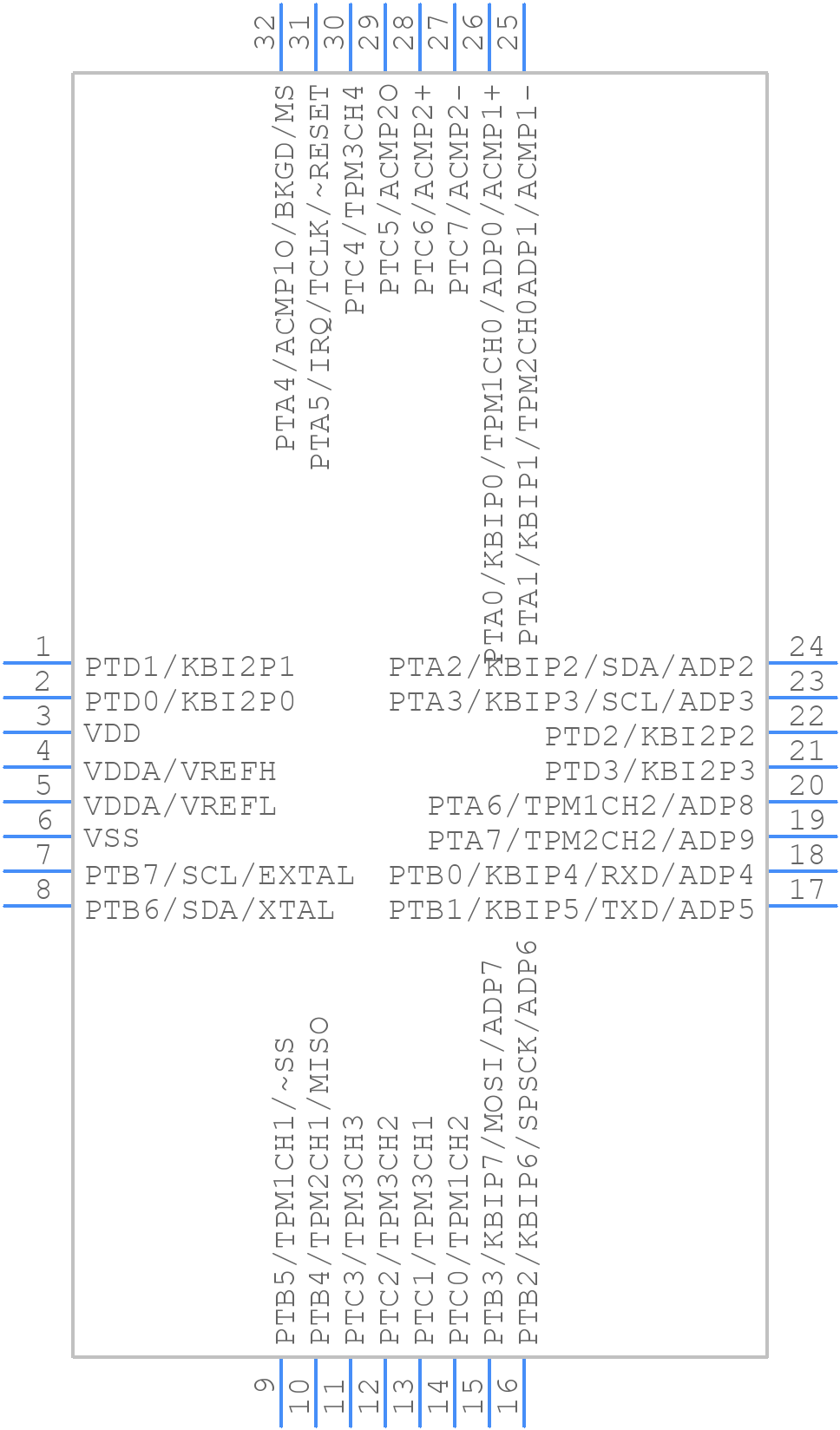

Use the download button to access the MC9S08QE16CLC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC9S0,
or try a keyword search, such as Microcontrollers
