MC9S08QE4CTG - NXP

Description: • 8-Bit HCS08 Central Processor Unit (CPU) – Up to 20 MHz CPU at 3.6 V to 1.8 V across temperature range of –40 °C to 85 °C – HC08 instruction set with added BGND instruction – Support for up to 32 interrupt/reset sources • On-Chip Memory – Flash read/program/erase over full operating voltage and temperature – Random-access memory (RAM) – Security circuitry to prevent unauthorized access to RAM and flash contents • Power-Saving Modes – Two low power stop modes – Reduced power wait mode – Low p

Download MC9S08QE4CTG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

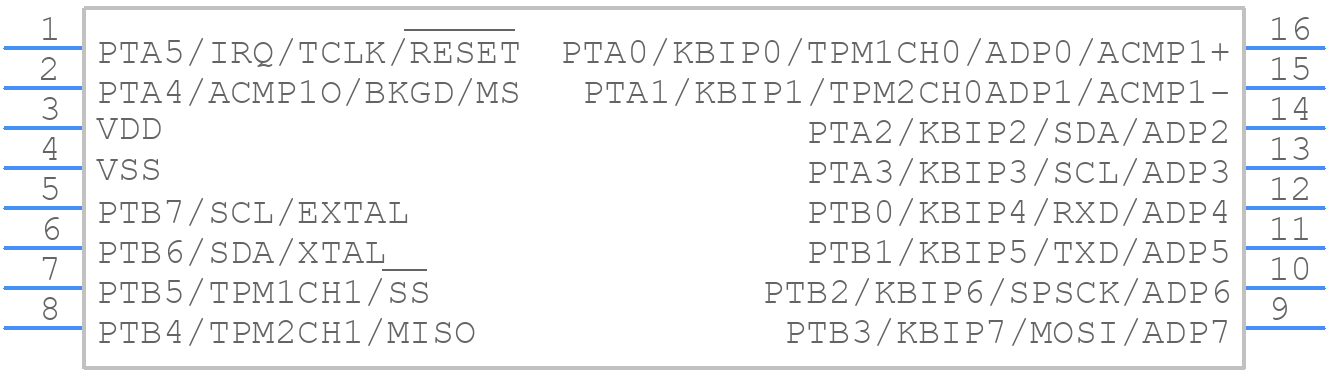

Symbol
MC9S08QE4CTG - NXP - PCB symbol
click to zoom
PCB Footprints
MC9S08QE4CTG - NXP PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP16 (SOT403-3)
click to zoom
3D Models
MC9S08QE4CTG - NXP - 3D model - Small Outline Packages - TSSOP16 (SOT403-3)
click to zoom

MC9S08QE4CTG Details

  • Manufacturer Part Number:

    MC9S08QE4CTG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    0.65 MM PITCH, ROHS COMPLIANT, TSSOP-16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    8

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    16 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    14

  • Number of Terminals:

    16

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    256

  • ROM (words):

    4096

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.2 mm

  • Speed:

    20 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

MC9S08QE4CTG Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be used with the internal oscillator is 20 MHz, but it's recommended to use a crystal oscillator for frequencies above 10 MHz for better accuracy and stability.
  • To configure the watchdog timer, you need to set the WDTCLK register to select the clock source, set the WDTCNT register to set the timeout period, and enable the watchdog timer by setting the WDTEN bit in the WDTCTL register. You can also use the WDT reset flag to detect when a watchdog reset has occurred.
  • No, the ADC on the MC9S08QE4CTG is only capable of measuring voltages between 0V and VDD (3.3V). If you need to measure higher voltages, you'll need to use an external voltage divider or amplifier to scale the voltage down to within the ADC's range.
  • The MC9S08QE4CTG has several low-power modes, including Stop, Wait, and Doze modes. To implement a low-power mode, you need to set the appropriate bits in the PMC (Power Management Control) register, disable any unnecessary peripherals, and put the MCU into the desired low-power mode using the ASM (Asynchronous Stop Mode) or WFI (Wait For Interrupt) instructions.
  • Yes, the UART on the MC9S08QE4CTG can operate at baud rates up to 500000 bps, but you'll need to use a external crystal oscillator to ensure accurate baud rate generation. You'll also need to configure the UART registers to select the desired baud rate and communication mode.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

MC9S08QE4CTG Overview

Use the download button to access the MC9S08QE4CTG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC9S0, or try a keyword search, such as Microcontrollers

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
