MC9S08QE4CWJ footprint, schematic symbol and 3D model by NXP

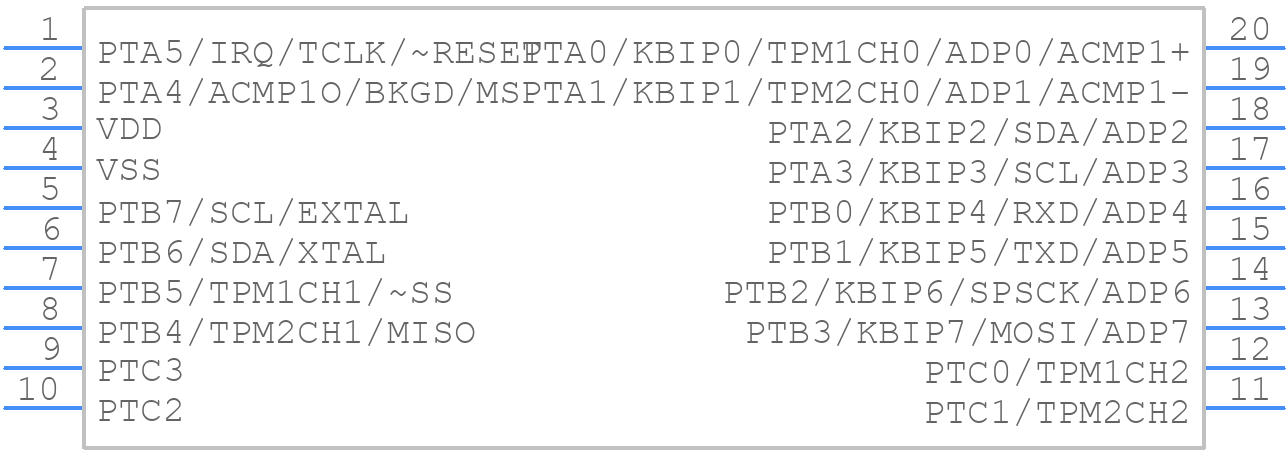

Symbol

click to zoom

PCB Footprints

MC9S08QE4CWJ - NXP PCB footprint - Other - Other - SOIC127P1030X265-20N

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MC9S08QE4CWJ
Part Number MC9S08QE4CWJ
Manufacturer NXP
Pin Count 20
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - SOIC127P1030X265-20N
Released Date Jan 11, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

MC9S08QE4CWJ Details

Manufacturer Part Number:
MC9S08QE4CWJ
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
1.27 MM PITCH, ROHS COMPLIANT, MS-013AC, SOIC-28
Country Of Origin:
Mainland China
ECCN Code:
3A991.A.2
HTS Code:
8542.31.00.01
Factory Lead Time:
13 Weeks
Manufacturer:
NXP Semiconductors
YTEOL:
0
Has ADC:
YES
Bit Size:
8
Boundary Scan:
YES
Clock Frequency-Max:
16 MHz
DAC Channels:
NO
DMA Channels:
NO
JESD-30 Code:
R-PDSO-G20
JESD-609 Code:
e3
Length:
12.8 mm
Moisture Sensitivity Level:
3
Number of I/O Lines:
18
Number of Terminals:
20
On Chip Program ROM Width:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
PWM Channels:
YES
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP20,.4
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
RAM (bytes):
256
ROM (words):
4096
ROM Programmability:
FLASH
Seated Height-Max:
2.65 mm
Speed:
20 MHz
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
3 V
Supply Voltage-Nom:
3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
40
Width:
7.5 mm
uPs/uCs/Peripheral ICs Type:
MICROCONTROLLER

MC9S08QE4CWJ Frequently Asked Questions (FAQs)

The maximum clock frequency that can be used with the internal oscillator is 20 MHz. However, it's recommended to use a crystal oscillator or an external clock source for more accurate and stable clocking.
To configure the WDT, you need to set the WDT_CS1 and WDT_CS2 registers to enable the WDT, and then set the WDT_PS register to set the timeout period. You can also use the WDT_RST register to reset the MCU in case of a fault.
Yes, the MC9S08QE4CWJ has a 12-bit ADC that can be used to convert analog signals from sensors. You need to configure the ADC using the ADC_SC1 and ADC_SC2 registers, and then use the ADC_R register to read the converted digital value.
To implement a UART communication protocol using the SCI, you need to configure the SCI using the SCI_SC1 and SCI_SC2 registers, and then use the SCI_TD and SCI_RD registers to transmit and receive data. You also need to set the baud rate and data format using the SCI_BD and SCI_CF registers.
Yes, the MC9S08QE4CWJ has 4 KB of internal flash memory that can be used to store and execute code. You need to use a flash programming tool, such as the NXP Flash Tool, to program the flash memory.

Trust Checks

System Verified

MC9S08QE4CWJ Overview

Use the download button to access the MC9S08QE4CWJ schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MC9S0, or try a keyword search, such as Microcontrollers

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
