- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MC9S08SF4MTG
- Part Number MC9S08SF4MTG
- Manufacturer NXP
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 16 ld tssop, pitch 0.65
- Released Date Jan 11, 2017
- Last Modified Date May 10, 2025 3:54 AM UTC
- Pinout / Pin List Click Here (Member Only)
MC9S08SF4MTG Details
-
Manufacturer Part Number:
MC9S08SF4MTG
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
Package Description:
0.65 MM PITCH, ROHS COMPLIANT, TSSOP-16
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8542.31.00.01
-
Factory Lead Time:
13 Weeks
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
3
-
Has ADC:
YES
MC9S08SF4MTG Frequently Asked Questions (FAQs)
-
The maximum clock frequency that can be used with the internal oscillator is 16 MHz, but it's recommended to use a crystal oscillator for frequencies above 8 MHz for better accuracy and stability.
-
To configure the WDT, set the WDT_CS1 and WDT_CS2 registers to enable the WDT, and then set the WDTCLK register to select the clock source. You can also set the WDT_TOV register to set the timeout value. Make sure to clear the WDT flag regularly to prevent a reset.
-
No, the ADC on the MC9S08SF4MTG is only designed to measure voltages between 0V and VDD (3.3V). If you need to measure higher voltages, you'll need to use an external voltage divider or a voltage translator circuit.
-
The MC9S08SF4MTG has several low-power modes, including Stop, Wait, and Doze modes. To implement a low-power mode, set the appropriate bits in the PMCR register, and then use the BCSR register to control the clock gating. You can also use the LPM instruction to enter a low-power mode.
-
Yes, the UART on the MC9S08SF4MTG is flexible and can be configured to use different baud rates. You can set the baud rate using the UARTBDH and UARTBDL registers. However, make sure to also set the correct clock source and divisor to ensure accurate baud rate generation.
Trust Checks
System Verified
MC9S08SF4MTG Overview

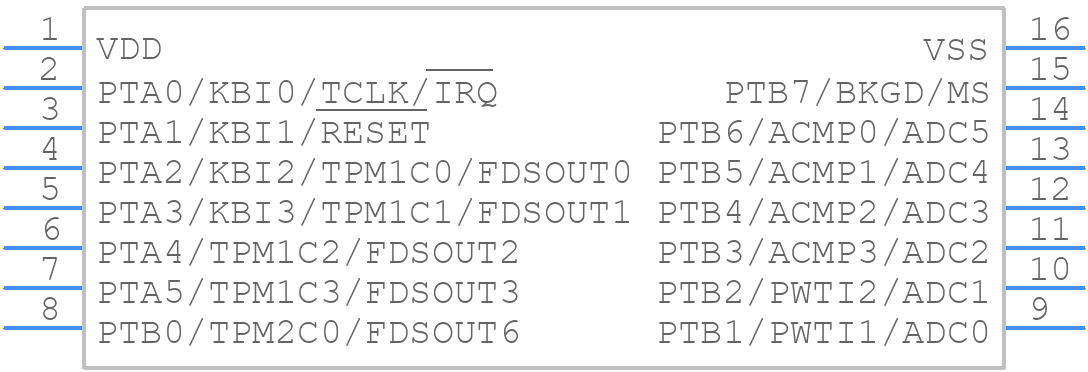

Use the download button to access the MC9S08SF4MTG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MC9S0,
or try a keyword search, such as Microcontrollers
