MC9S08SH4CTJR - NXP

Description: 8-bit Microcontrollers - MCU 9S08 UC W/ 8K 0.25UM SGF

Download MC9S08SH4CTJR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

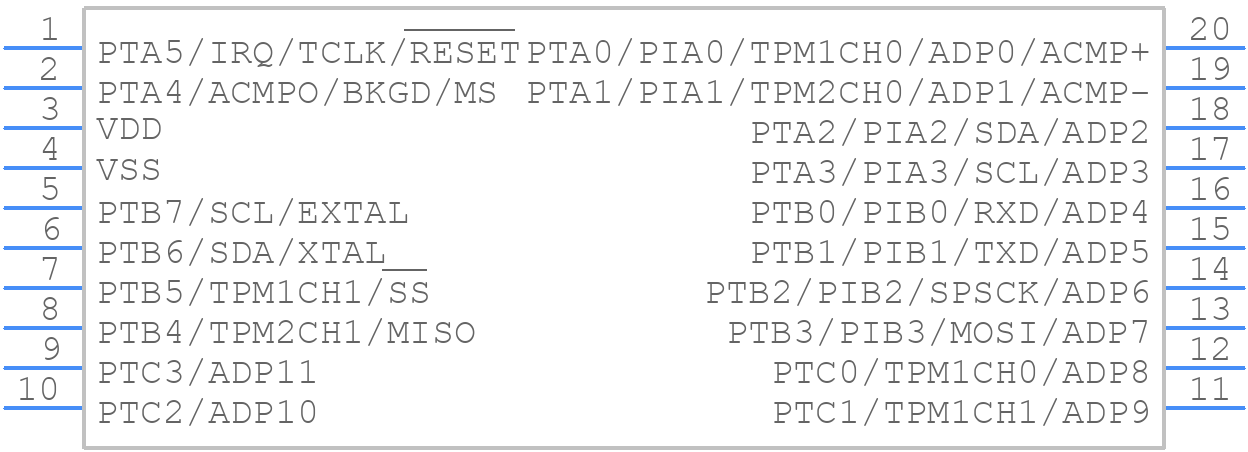

Symbol
MC9S08SH4CTJR - NXP - PCB symbol
click to zoom
PCB Footprints
MC9S08SH4CTJR - NXP PCB footprint - Small Outline Packages - Small Outline Packages - MC9S08SH4CTJR
click to zoom
3D Models
MC9S08SH4CTJR - NXP - 3D model - Small Outline Packages - MC9S08SH4CTJR
click to zoom

MC9S08SH4CTJR Details

  • Manufacturer Part Number:

    MC9S08SH4CTJR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    TSSOP-20

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    3

  • Has ADC:

    YES

  • Bit Size:

    8

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    16 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    NO

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    18

  • Number of Terminals:

    20

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    256

  • ROM (words):

    4096

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.2 mm

  • Speed:

    40 MHz

  • Supply Current-Max:

    7.7 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

MC9S08SH4CTJR Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be used with the internal oscillator is 20 MHz. However, it's recommended to use a crystal oscillator or an external clock source for more accurate and stable clocking.
  • To configure the watchdog timer to reset the MCU, you need to set the WDT_CTL register to enable the watchdog timer and set the timeout period using the WDT_TOV register. You also need to periodically refresh the watchdog timer using the WDT_FTW register to prevent a reset.
  • The VLLS mode is a low-power mode that reduces the power consumption of the MCU to a minimum. In this mode, the MCU's voltage regulator is disabled, and the internal clock is stopped. The VLLS mode is useful for applications that require extremely low power consumption, such as battery-powered devices.
  • To use the ADC module, you need to configure the ADC_SC1 register to select the analog input channel, set the ADC_SC2 register to select the conversion mode, and start the conversion using the ADC_SC3 register. You can then read the converted digital value from the ADC_R1 register.
  • The COP module is a watchdog timer that monitors the MCU's operation and resets the MCU if it fails to respond within a specified time period. The COP module is useful for detecting and recovering from software faults or hangs.
