MC9S08SH4CWJR footprint, schematic symbol and 3D model by NXP

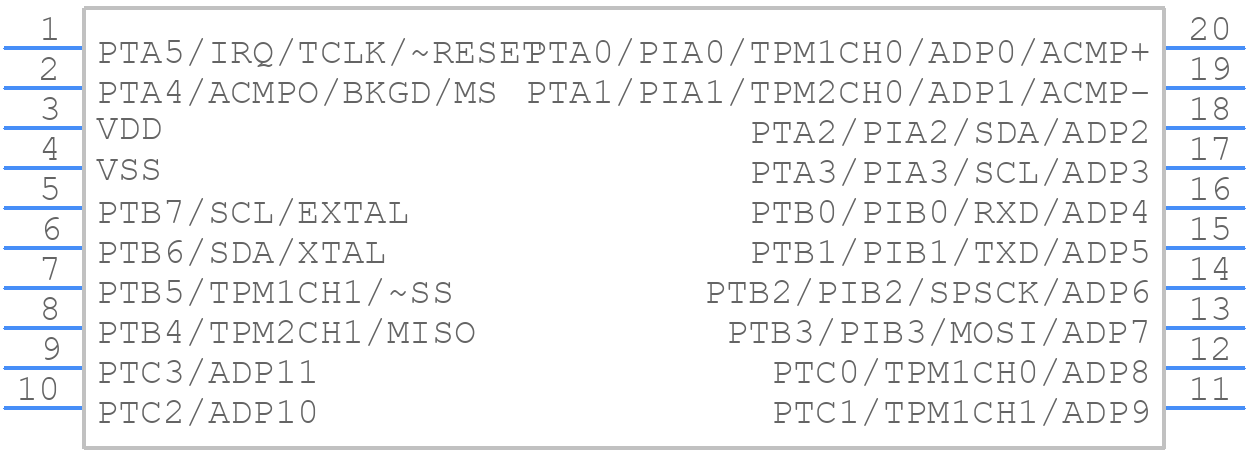

Symbol

click to zoom

PCB Footprints

MC9S08SH4CWJR - NXP PCB footprint - Other - Other - SOIC127P1030X265-20N

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MC9S08SH4CWJR
Part Number MC9S08SH4CWJR
Manufacturer NXP
Pin Count 20
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - SOIC127P1030X265-20N
Released Date Jan 11, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

MC9S08SH4CWJR Details

Manufacturer Part Number:
MC9S08SH4CWJR
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
SOIC-20
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.31.00.01
Factory Lead Time:
13 Weeks
Manufacturer:
NXP Semiconductors
YTEOL:
0
Has ADC:
YES
Bit Size:
8
Boundary Scan:
YES
Clock Frequency-Max:
16 MHz
DAC Channels:
YES
DMA Channels:
NO
JESD-30 Code:
R-PDSO-G20
JESD-609 Code:
e3
Length:
12.8 mm
Moisture Sensitivity Level:
3
Number of I/O Lines:
18
Number of Terminals:
20
On Chip Program ROM Width:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
PWM Channels:
YES
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP20,.4
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
RAM (bytes):
256
ROM (words):
4096
ROM Programmability:
FLASH
Seated Height-Max:
2.65 mm
Speed:
40 MHz
Supply Current-Max:
7.7 mA
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
3 V
Supply Voltage-Nom:
3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
40
Width:
7.5 mm
uPs/uCs/Peripheral ICs Type:
MICROCONTROLLER

MC9S08SH4CWJR Frequently Asked Questions (FAQs)

The maximum clock frequency that can be used with the internal oscillator is 20 MHz. However, it's recommended to use a crystal oscillator or an external clock source for more accurate and stable clocking.
To configure the watchdog timer to reset the MCU, you need to set the WDT_CTL register to enable the watchdog timer and set the timeout period using the WDT_TOV register. You also need to periodically refresh the watchdog timer using the WDT_FTW register to prevent a reset.
The COP module is a watchdog timer that monitors the MCU's operation and resets the MCU if it fails to periodically refresh the COP timer. This ensures that the MCU is operating correctly and prevents it from getting stuck in an infinite loop or other abnormal conditions.
To use the SCI module for UART communication, you need to configure the SCI_C1 register to enable the SCI module and set the baud rate using the SCI_BDH and SCI_BDL registers. You also need to configure the SCI_C2 register to set the data format and enable the transmitter and receiver.
The TPM module is a 16-bit timer that can be used for various applications such as generating PWM signals, measuring pulse widths, and counting events. It can also be used as a general-purpose timer for timing intervals and generating interrupts.
