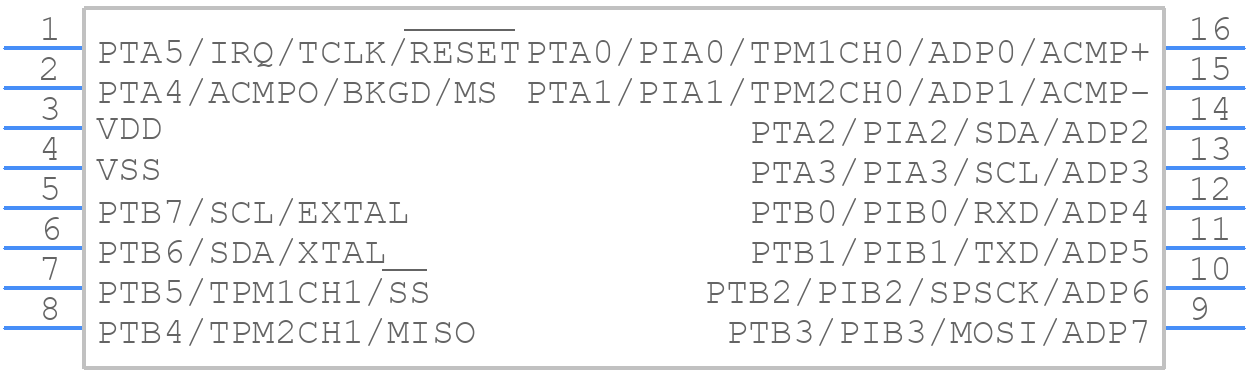

MC9S08SH4MTG - NXP

MC9S08SH4MTG Frequently Asked Questions (FAQs)

• What is the maximum clock frequency that can be used with the internal oscillator?
  The maximum clock frequency that can be used with the internal oscillator is 20 MHz. However, it's recommended to use a crystal oscillator or an external clock source for more accurate and stable clocking.
• How do I configure the ADC to convert analog signals from multiple channels?
  To configure the ADC to convert analog signals from multiple channels, you need to use the ADC's scan mode. This involves setting the ADCSC1 register to select the desired channels, and then using the ADCSC2 register to control the scan sequence.
• What is the purpose of the COP (Computer Operating Properly) watchdog timer?
  The COP watchdog timer is a safety feature that resets the microcontroller if it fails to periodically reset the COP timer. This ensures that the microcontroller is operating properly and prevents it from getting stuck in an infinite loop or other abnormal condition.
• How do I use the SCI (Serial Communication Interface) module to communicate with a serial device?
  To use the SCI module, you need to configure the SCI control registers (SCIC1 and SCIC2) to set the baud rate, data bits, and stop bits. Then, use the SCI data register (SCID) to transmit and receive data.
• What is the purpose of the TPM (Timer/PWM Module) and how do I use it?
  The TPM module is a 16-bit timer that can be used for various applications such as generating PWM signals, measuring pulse widths, and counting events. To use the TPM module, you need to configure the TPM control registers (TPMCTL0 and TPMCTL1) to set the timer mode, clock source, and other parameters.
