The recommended PCB footprint for the MCACD20N06HE3-TP is a standard SOT-223 package with a minimum pad size of 1.5mm x 1.5mm and a thermal pad size of 2.5mm x 2.5mm.
To ensure reliability in high-temperature applications, it is recommended to follow proper thermal management practices, such as providing adequate heat sinking, using a thermal interface material, and keeping the junction temperature below the maximum rated value of 150°C.
The maximum allowed voltage spike for the MCACD20N06HE3-TP is 30V, but it is recommended to limit voltage spikes to 25V or less to ensure reliable operation and prevent damage to the device.
Yes, the MCACD20N06HE3-TP can be used in switching applications, but it is recommended to follow proper switching guidelines, such as using a suitable gate driver, minimizing switching losses, and ensuring proper thermal management.
The typical turn-on and turn-off time for the MCACD20N06HE3-TP is around 10-20ns, but this can vary depending on the specific application and operating conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCACD20N06HE3-TP Overview

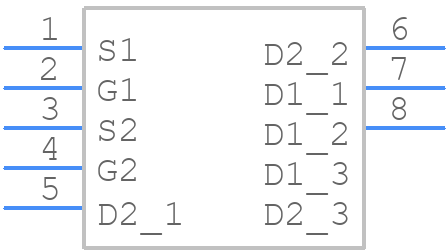

Use the download button to access the MCACD20N06HE3-TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCACD,
or try a keyword search, such as Power Field-Effect Transistors
