- Part Number MCACD20N10YHE3-TP
- Manufacturer MCC
- Pin Count 10
- Part Category MOSFET (N-Channel)
- Package Category Other
- Footprint Name Other - PDFN5060-8D
- Released Date Aug 17, 2023
- Last Modified Date Mar 13, 2024 1:00 PM UTC
- Pinout / Pin List Click Here (Member Only)
MCACD20N10YHE3-TP Details
-
Manufacturer Part Number:
MCACD20N10YHE3-TP
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
Manufacturer:
Micro Commercial Components
-
YTEOL:
6
-
DS Breakdown Voltage-Min:
100 V
-
Drain Current-Max (ID):
20 A
-
Drain-source On Resistance-Max:
0.027 Ω
MCACD20N10YHE3-TP Frequently Asked Questions (FAQs)
-
The recommended land pattern for the MCACD20N10YHE3-TP can be found in the Micro Commercial Components' application note or by contacting their technical support team. A general guideline is to follow the IPC-7351 standard for surface mount components.
-
The thermal pad on the MCACD20N10YHE3-TP should be connected to a thermal relief pattern on the PCB to ensure proper heat dissipation. A minimum of 4 thermal vias with a diameter of 0.3mm to 0.5mm is recommended, spaced evenly around the thermal pad.
-
The maximum operating temperature range for the MCACD20N10YHE3-TP is -55°C to 150°C, as specified in the datasheet. However, it's recommended to derate the component's power handling capability at higher temperatures to ensure reliability.
-
The MCACD20N10YHE3-TP is a commercial-grade component, and its use in high-reliability or aerospace applications may require additional testing and qualification. It's recommended to consult with Micro Commercial Components' technical support team or a qualified reliability engineer to determine the component's suitability for such applications.
-
To ensure proper soldering, follow the recommended soldering profile and temperature guidelines in the datasheet. Use a solder with a melting point between 217°C to 220°C, and ensure the component is properly aligned and secured to the PCB during the soldering process.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
MCACD20N10YHE3-TP Overview

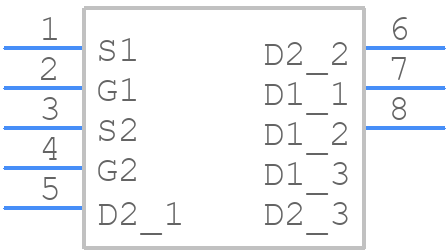

Use the download button to access the MCACD20N10YHE3-TP schematic symbol, PCB footprint, and 3D model.
