Part Image

MCB1820A - CTS

Description: The MCB1820A is a ceramic waveguide bandpass filter with a 17.70 - 18.70 GHz passband. The component I/O's can interface directly to microstrip transmission lines on the top-layer of printed circuit boards, which makes this a true surface mount filter. CTS ceramic waveguide filters are fabricated using proprietary CTS ceramic formulations, but are constructed by a mature process, which provides superior performance yet competitive pricing compared to other exotic technologies that are generally required f

Download MCB1820A Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MCB1820A model

Email notifications will be applied after download.

Send part feedback

Symbol

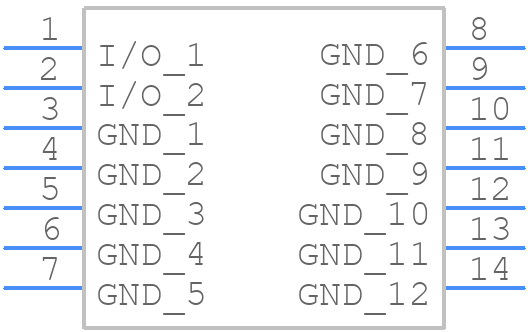

MCB1820A - CTS - PCB symbol

PCB Footprints

MCB1820A - CTS PCB footprint - Other - Other - MCB1820A

3D Models

MCB1820A - CTS - 3D model - Other - MCB1820A

Datasheet Download Datasheet
Stock & Prices Price & Stock for MCB1820A
Part Number MCB1820A
Manufacturer CTS
Pin Count 14
Part Category Filter
Package Category Other
Footprint Name Other - MCB1820A
Released Date Apr 15, 2026
Last Modified Date Apr 15, 2026 11:09 AM UTC
Pinout / Pin List Click Here (Member Only)

MCB1820A Details

Manufacturer Part Number:
MCB1820A
Manufacturer:
CTS Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

MCB1820A Overview

Use the download button to access the MCB1820A schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MCB18, or try a keyword search, such as Fixed Inductors
