- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MCG60N06YHE3-TP
- Part Number MCG60N06YHE3-TP
- Manufacturer MCC
- Pin Count 9
- Part Category MOSFET (N-Channel)
- Package Category Other
- Footprint Name Other - DFN3333_23
- Released Date Aug 20, 2023
- Last Modified Date May 17, 2024 4:34 PM UTC
- Pinout / Pin List Click Here (Member Only)
MCG60N06YHE3-TP Details
-
Manufacturer Part Number:
MCG60N06YHE3-TP
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
Manufacturer:
Micro Commercial Components
-
YTEOL:
5
-
DS Breakdown Voltage-Min:
60 V
-
Drain Current-Max (ID):
60 A
-
Drain-source On Resistance-Max:
0.0083 Ω
-
Packing Method:
TR
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
MCG60N06YHE3-TP Overview

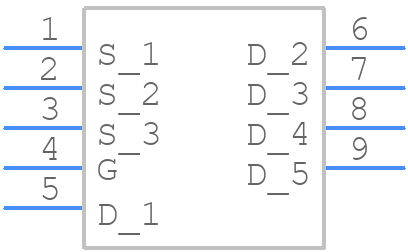

Use the download button to access the MCG60N06YHE3-TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCG60,
or try a keyword search, such as Power Field-Effect Transistors
