MCGPR50V478M22X41 - Multicomp Pro

Description: MULTICOMP - MCGPR50V478M22X41 - CAP, ALU ELEC, 4700UF, 50V, RAD

Download MCGPR50V478M22X41 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MCGPR50V478M22X41 - Multicomp Pro - PCB symbol
click to zoom
PCB Footprints

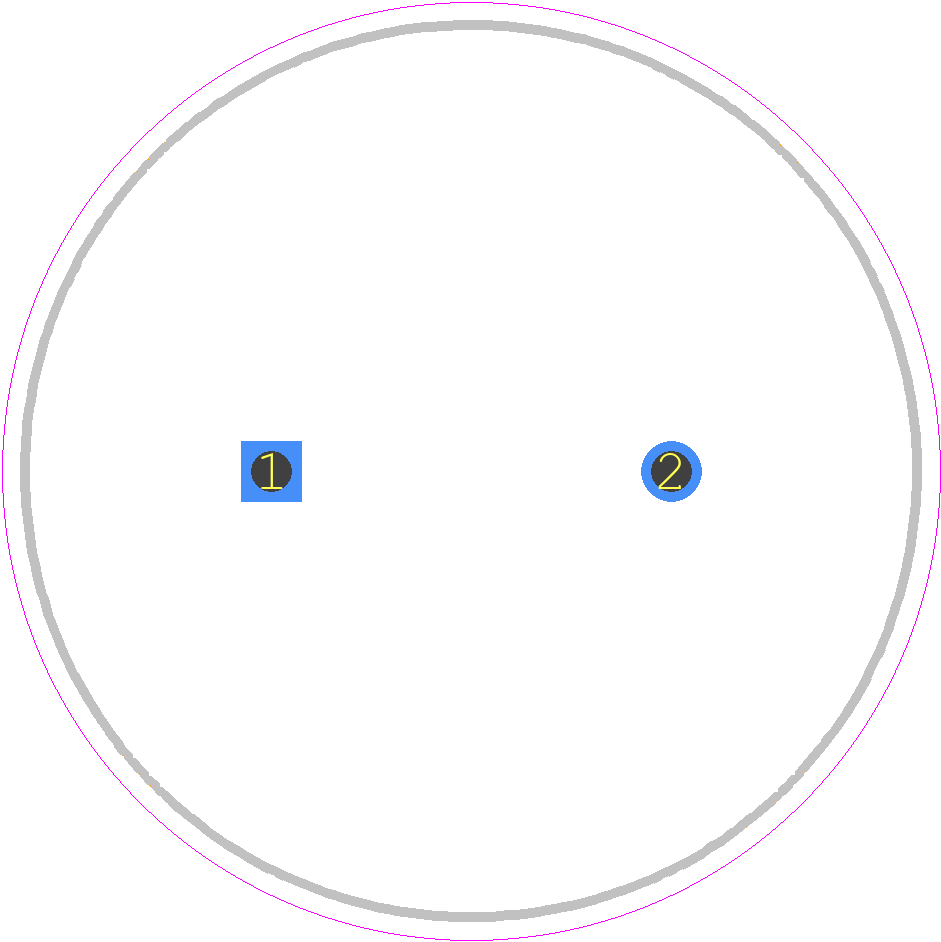

MCGPR50V478M22X41 - Multicomp Pro PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - MCC 43x22.5
click to zoom
3D Models
MCGPR50V478M22X41 - Multicomp Pro - 3D model - Capacitor, Polarized Radial Diameter - MCC 43x22.5
click to zoom

MCGPR50V478M22X41 Details

  • Manufacturer Part Number:

    MCGPR50V478M22X41

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    SPC Multicomp

  • YTEOL:

    7

  • Capacitance:

    4700 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    22 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • Leakage Current:

    2.35 mA

  • Length:

    41 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Ripple Current:

    3380 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.18

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    WIRE

MCGPR50V478M22X41 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, the MCGPR50V478M22X41 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
  • The ESR of MCGPR50V478M22X41 is not explicitly stated in the datasheet, but it can be estimated to be around 0.05 ohms based on similar capacitors from SPC Multicomp.
  • While the datasheet doesn't provide specific information on vibration resistance, SPC Multicomp capacitors are generally designed to withstand moderate vibration. However, it's recommended to consult with the manufacturer or a qualified engineer to determine the capacitor's suitability for high-vibration applications.
  • The shelf life of MCGPR50V478M22X41 is typically 2 years from the date of manufacture, when stored in a dry, cool environment, away from direct sunlight and moisture.
