A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
Ensure that the device is operated within the recommended voltage and current limits, and that the PCB is designed to minimize thermal resistance. Also, consider using a thermal interface material (TIM) to improve heat transfer between the device and heat sink.
Exceeding the maximum Tj rating can lead to reduced device lifespan, increased thermal resistance, and potentially catastrophic failure. It is essential to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
Implement ESD protection measures during handling, storage, and assembly. Use ESD-safe materials, wrist straps, and mats. Ensure that the device is handled in a static-controlled environment, and consider using ESD protection devices or diodes on the PCB.
Use a soldering iron with a temperature range of 250°C to 260°C, and a soldering time of 3-5 seconds. Ensure that the PCB is designed to withstand the soldering process, and that the device is properly secured to the PCB to prevent movement during soldering.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCH6353-TL-W Overview

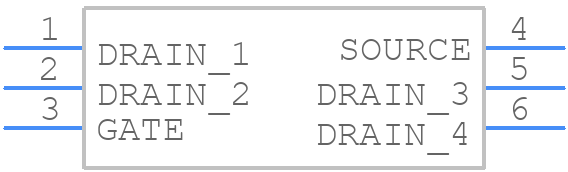

Use the download button to access the MCH6353-TL-W schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCH63,
or try a keyword search, such as Power Field-Effect Transistors
