MCIMX6D5EYM12AE - NXP

Description: Processors - Application Specialized MCIMX6D5EYM12AE/LFBGA624///TRAY MULTIPLE DP BAKEAB

Download MCIMX6D5EYM12AE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

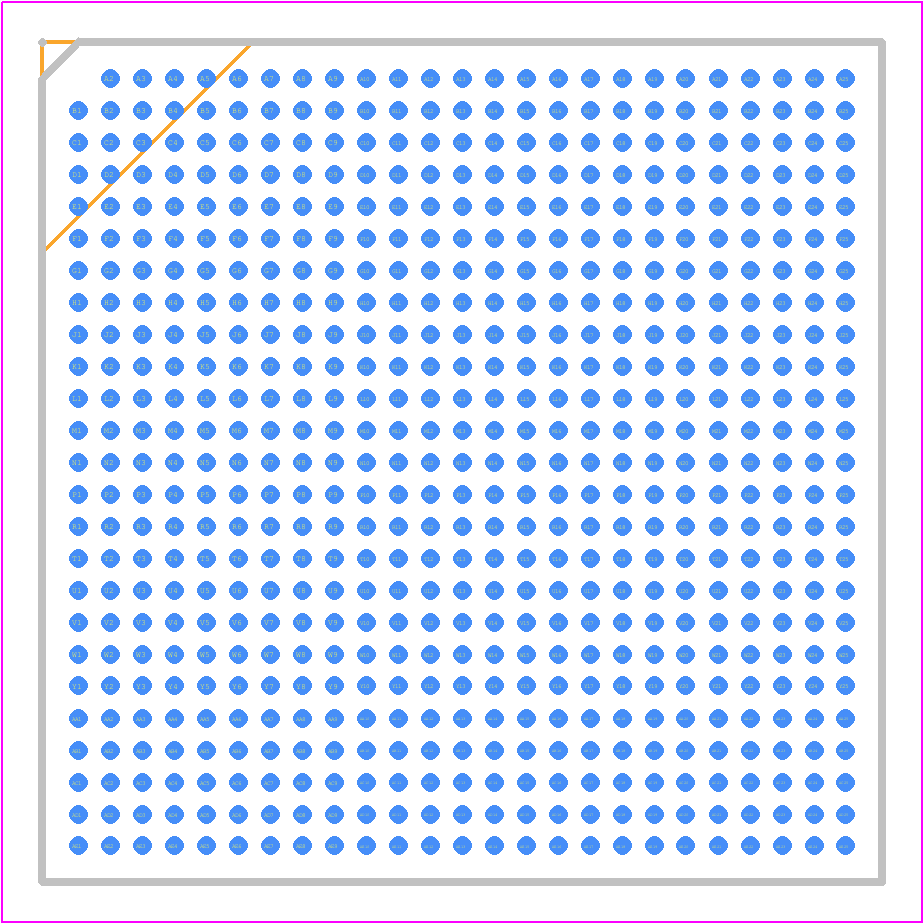

MCIMX6D5EYM12AE - NXP PCB footprint - BGA - BGA - 624-BGA-NXP
click to zoom
3D Models
MCIMX6D5EYM12AE - NXP  - 3D model - BGA - 624-BGA-NXP
click to zoom

MCIMX6D5EYM12AE Details

  • Manufacturer Part Number:

    MCIMX6D5EYM12AE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    FCBGA-624

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Date Of Intro:

    2017-09-12

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    10

  • JESD-30 Code:

    S-PBGA-B624

  • JESD-609 Code:

    e1

  • Length:

    21 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    624

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA624,25X25,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    1.5 V

  • Supply Voltage-Min:

    1.4 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    21 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MCIMX6D5EYM12AE Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MCIMX6D5EYM12AE is -40°C to 105°C.
  • The clock settings for the MCIMX6D5EYM12AE can be configured using the Clock Control Module (CCM) registers. Refer to the i.MX6DQ Reference Manual for more information.
  • The maximum frequency of the CPU is 1.2 GHz, and the maximum frequency of the GPU is 532 MHz.
  • The DDR3 memory interface can be enabled by configuring the DDR3 PHY registers and the Memory Controller registers. Refer to the i.MX6DQ Reference Manual for more information.
  • The power consumption of the MCIMX6D5EYM12AE varies depending on the operating frequency and voltage. Refer to the i.MX6DQ datasheet for more information on power consumption.
