MCIMX6D6AVT10ADR - NXP

Description: Microprocessors - MPU i.MX 6 series 32-bit MPU, Dual ARM Cortex-A9 core, 1GHz, FCBGA 624

Download MCIMX6D6AVT10ADR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

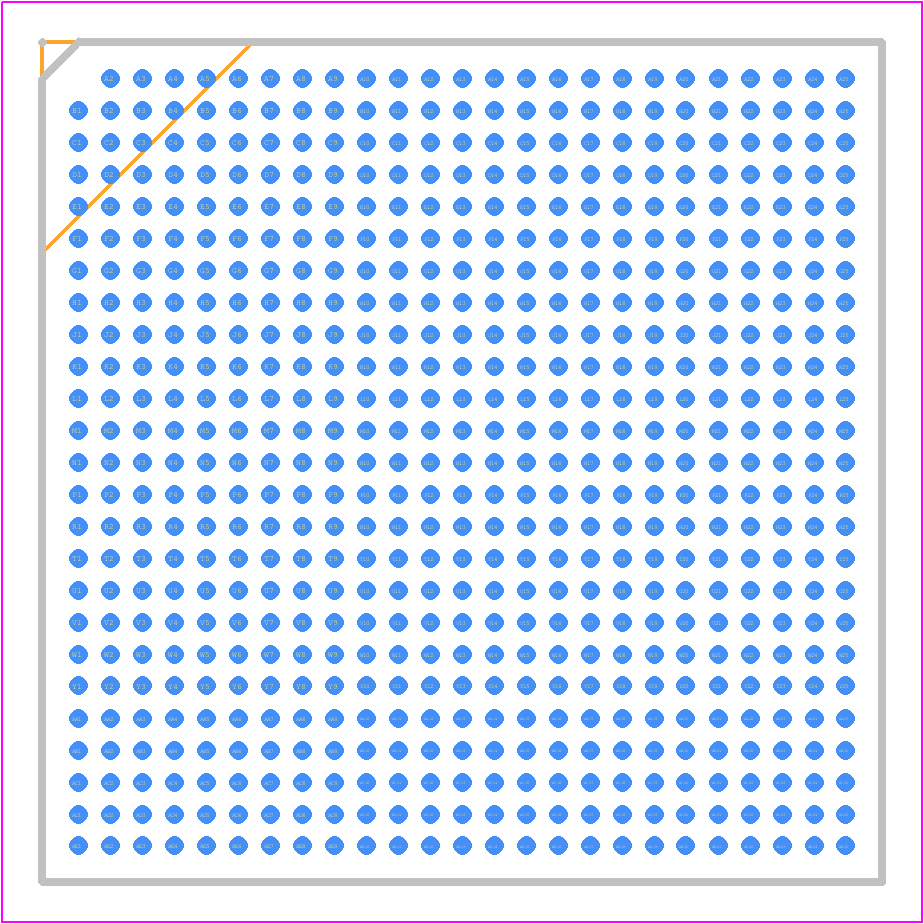

MCIMX6D6AVT10ADR - NXP PCB footprint - BGA - BGA - 624 FC PBGA  21X21X2 PKG 0.8 MM PITCH
click to zoom
3D Models
MCIMX6D6AVT10ADR - NXP  - 3D model - BGA - 624 FC PBGA  21X21X2 PKG 0.8 MM PITCH
click to zoom

MCIMX6D6AVT10ADR Details

  • Manufacturer Part Number:

    MCIMX6D6AVT10ADR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    FCBGA-624

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    10

  • Additional Feature:

    64-BIT BUS WIDTH AVAILABLE

  • JESD-30 Code:

    S-PBGA-B624

  • JESD-609 Code:

    e1

  • Length:

    21 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    624

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.16 mm

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    21 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MCIMX6D6AVT10ADR Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MCIMX6D6AVT10ADR is -40°C to 105°C.
  • The DDR memory interface on the MCIMX6D6AVT10ADR can be configured using the DDR Controller (DDRC) module. Refer to the i.MX6D Applications Processor Reference Manual for detailed configuration and timing settings.
  • The maximum clock speed of the MCIMX6D6AVT10ADR is 1.2 GHz.
  • The MCIMX6D6AVT10ADR has a Power Management Unit (PMU) that allows for dynamic voltage and frequency scaling. Refer to the i.MX6D Applications Processor Reference Manual for details on implementing power management.
  • The MCIMX6D6AVT10ADR can support up to 4GB of RAM.
