MCIMX6L8DVN10ACR - NXP

Description: Processors - Application Specialized MCIMX6L8DVN10AC/TFBGA432///REEL 13 Q1/T1 *STANDAR

Download MCIMX6L8DVN10ACR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

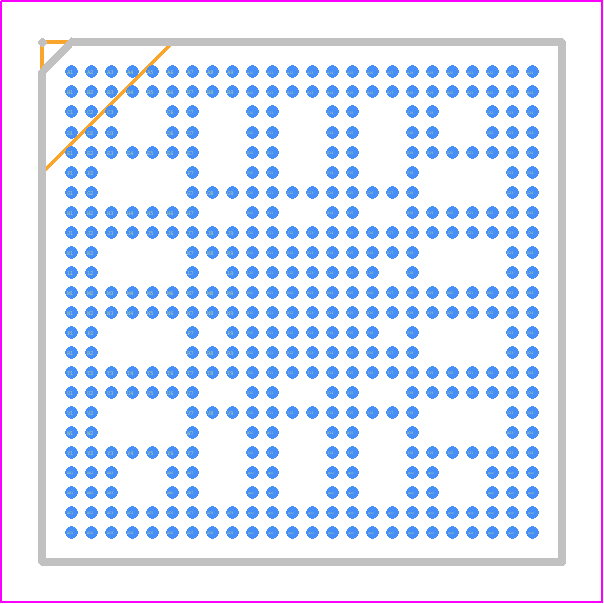

MCIMX6L8DVN10ACR - NXP PCB footprint - BGA - BGA - SOT1556-1
click to zoom
3D Models
MCIMX6L8DVN10ACR - NXP  - 3D model - BGA - SOT1556-1
click to zoom

MCIMX6L8DVN10ACR Details

  • Manufacturer Part Number:

    MCIMX6L8DVN10ACR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TFBGA-432

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • JESD-30 Code:

    S-PBGA-B432

  • JESD-609 Code:

    e1

  • Length:

    13 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    432

  • Operating Temperature-Max:

    95 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    BGA432,24X24,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    1.5 V

  • Supply Voltage-Min:

    1.375 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    13 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MCIMX6L8DVN10ACR Frequently Asked Questions (FAQs)

  • The MCIMX6L8DVN10ACR has an operating temperature range of -40°C to 105°C.
  • The DDR memory interface can be configured using the DDR Controller (DDRC) registers. Refer to the i.MX6 DDR Controller Module chapter in the Reference Manual for more information.
  • The maximum clock frequency for the Cortex-A9 core is 1 GHz.
  • The HDMI interface can be enabled by configuring the HDMI PHY and controller registers. Refer to the HDMI chapter in the Reference Manual for more information.
  • The power consumption of the processor varies depending on the operating mode. Refer to the Power Management chapter in the Reference Manual for more information on power consumption in different modes such as Run, Wait, and Stop modes.
