MCKLZ450M271N45Y - Multicomp Pro

Description: Snap In Aluminium Electrolytic Capacitor, 450V, 270µF, ± 20% 25mm × 45mm

Download MCKLZ450M271N45Y Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MCKLZ450M271N45Y - Multicomp Pro - PCB symbol
click to zoom
PCB Footprints

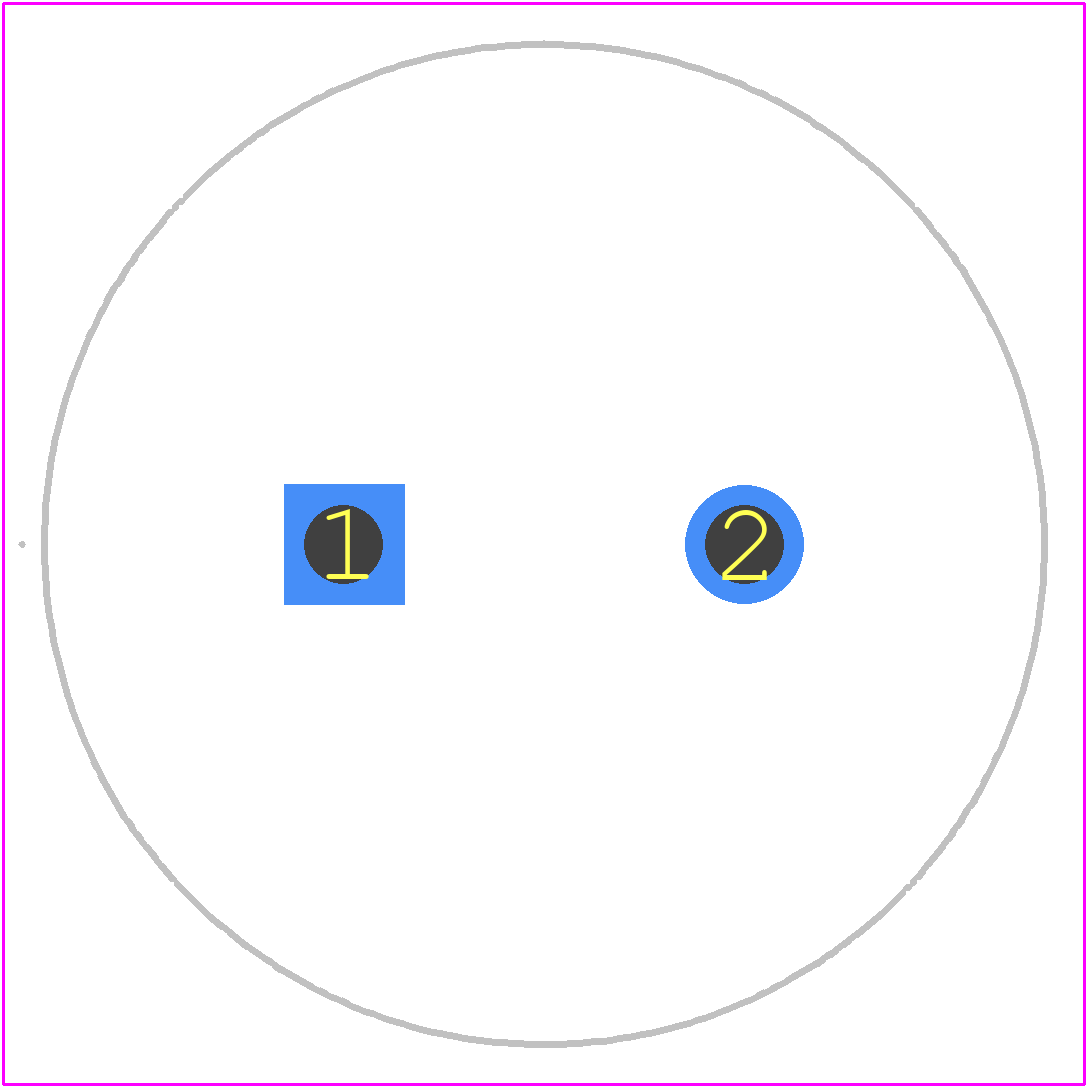

MCKLZ450M271N45Y - Multicomp Pro PCB footprint - Other - Other - 25mm × 45mm
click to zoom
3D Models
MCKLZ450M271N45Y - Multicomp Pro - 3D model - Other - 25mm × 45mm
click to zoom

MCKLZ450M271N45Y Details

  • Manufacturer Part Number:

    MCKLZ450M271N45Y

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    SPC Multicomp

  • YTEOL:

    6

  • Capacitance:

    270 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • Leakage Current:

    3 mA

  • Length:

    45 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    1460 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

MCKLZ450M271N45Y Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is between 250°C to 260°C for a maximum of 5 seconds.
  • Yes, the MCKLZ450M271N45Y capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
  • The ESR of MCKLZ450M271N45Y is approximately 0.05 ohms at 100 kHz.
  • Yes, the MCKLZ450M271N45Y capacitor is designed to withstand high-vibration environments, with a vibration endurance of 10-2000 Hz, 1.5 mm amplitude.
  • The MSL of MCKLZ450M271N45Y is MSL 2, which means it can withstand exposure to moisture for up to 4 days without requiring baking before reflow soldering.
