MCKLZ450M471P50Y - Multicomp Pro

Description: Snap In Aluminium Electrolytic Capacitor, 450V, 470µF, ± 20%

Download MCKLZ450M471P50Y Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MCKLZ450M471P50Y - Multicomp Pro - PCB symbol
click to zoom
PCB Footprints

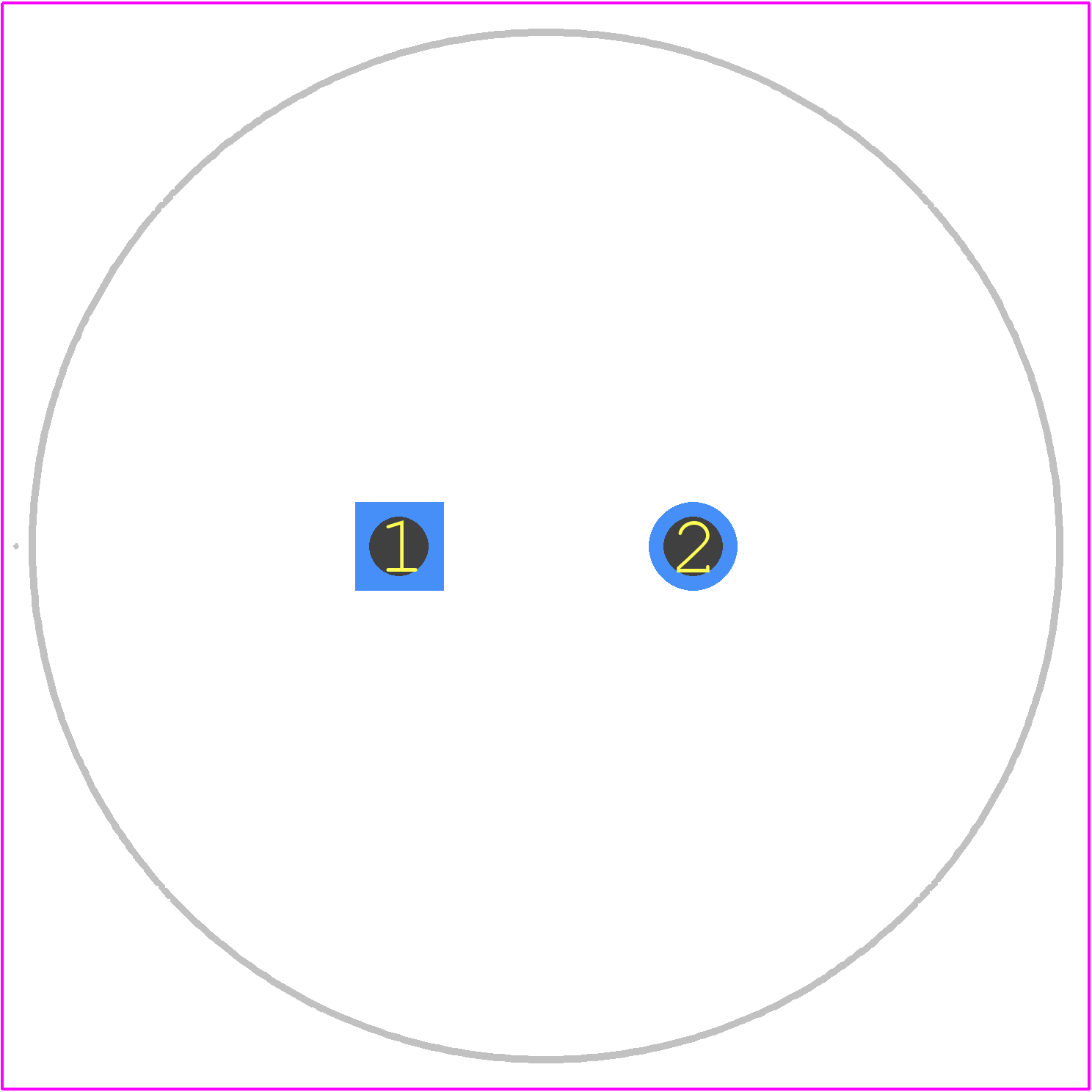

MCKLZ450M471P50Y - Multicomp Pro PCB footprint - Other - Other - MCKLZ450M471P50Y-2
click to zoom
3D Models
MCKLZ450M471P50Y - Multicomp Pro - 3D model - Other - MCKLZ450M471P50Y-2
click to zoom

MCKLZ450M471P50Y Details

  • Manufacturer Part Number:

    MCKLZ450M471P50Y

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    SPC Multicomp

  • YTEOL:

    6

  • Capacitance:

    470 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • Leakage Current:

    3 mA

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    1860 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

MCKLZ450M471P50Y Frequently Asked Questions (FAQs)

  • The operating temperature range of the MCKLZ450M471P50Y is -55°C to 125°C.
  • Yes, the MCKLZ450M471P50Y capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
  • The recommended derating for the MCKLZ450M471P50Y capacitor is 50% of the rated voltage at 125°C, and 75% of the rated voltage at 85°C to 125°C.
  • Yes, the MCKLZ450M471P50Y capacitor is suitable for high-reliability applications, such as aerospace, defense, and medical devices, due to its high-quality materials and manufacturing process.
  • The ESR of the MCKLZ450M471P50Y capacitor is not explicitly stated in the datasheet, but it can be requested from the manufacturer or determined through testing.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCKLZ450M471P50Y Overview

Use the download button to access the MCKLZ450M471P50Y schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCKLZ, or try a keyword search, such as Ceramic Capacitors
