Part Image

MCLPR35V478M22X30 - Multicomp Pro

Description: Electrolytic Capacitor, Snap-in, 4700 µF, 35 V, ± 20%, Snap-In, 2000 hours @ 85°C

Download MCLPR35V478M22X30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MCLPR35V478M22X30 - Multicomp Pro - PCB symbol
click to zoom
PCB Footprints

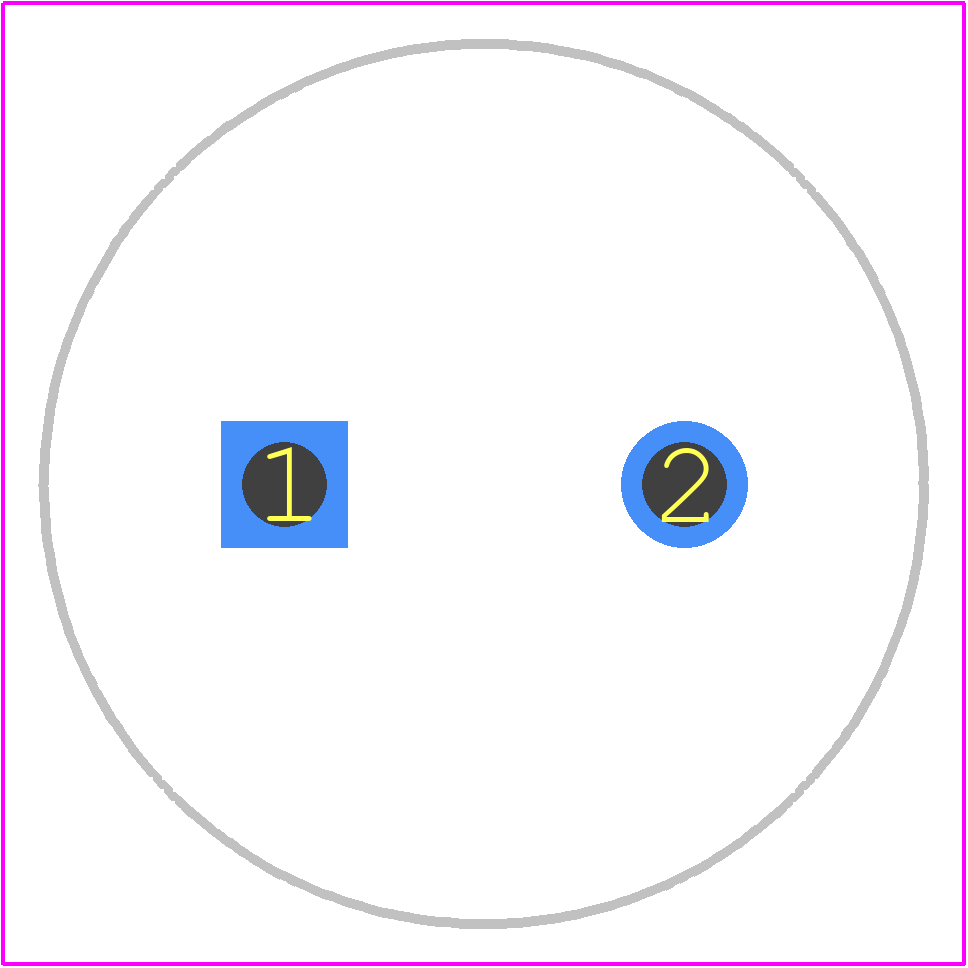

MCLPR35V478M22X30 - Multicomp Pro PCB footprint - Other - Other - 22*30
click to zoom

MCLPR35V478M22X30 Details

  • Manufacturer Part Number:

    MCLPR35V478M22X30

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • Manufacturer:

    SPC Multicomp

  • YTEOL:

    7

  • Capacitance:

    4700 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Dielectric Material:

    ALUMINUM (WET)

  • Leakage Current:

    3.29 mA

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    35 V

  • Ripple Current:

    2450 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.3

  • Terminal Shape:

    SNAP-IN

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCLPR35V478M22X30 Overview

Use the download button to access the MCLPR35V478M22X30 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MCLPR, or try a keyword search, such as Ceramic Capacitors
