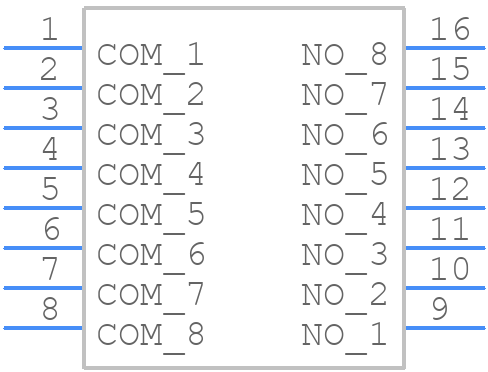

MCNDI-08S footprint, schematic symbol and 3D model by Multicomp Pro

Symbol

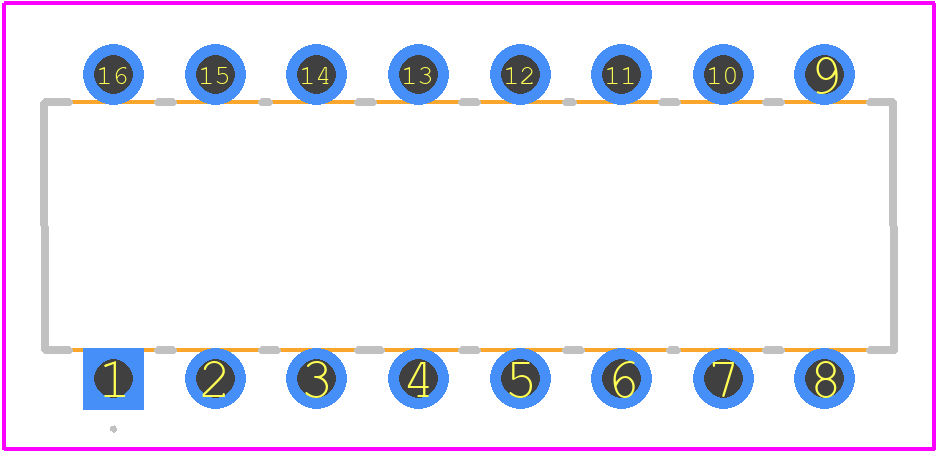

PCB Footprints

3D Models

MCNDI-08S Details

The recommended operating temperature range for the MCNDI-08S is -40°C to 125°C.
To ensure reliability in high-vibration environments, it's recommended to use a secure mounting method, such as screwing or adhesive mounting, and to follow the manufacturer's guidelines for vibration testing.
The MCNDI-08S is not designed for use in humid or wet environments. It's recommended to use a conformal coating or potting compound to protect the device from moisture.
The maximum current rating for the MCNDI-08S is 1A per pin, but it's recommended to derate the current based on the ambient temperature and other environmental factors.
To troubleshoot issues with the MCNDI-08S, start by checking the power supply voltage, signal integrity, and signal routing. Use oscilloscopes or logic analyzers to debug the signals and identify the root cause of the issue.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the MCNDI-08S schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MCNDI, or try a keyword search, such as DIP Switches
