MCP130T-315I/SN - Microchip

Description: Supervisory Circuits w/5K Pull-Up Low

Download MCP130T-315I/SN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

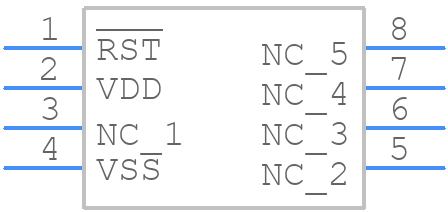

MCP130T-315I/SN - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP130T-315I/SN - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - MCP41100-E/SN
click to zoom
3D Models
MCP130T-315I/SN - Microchip - 3D model - Small Outline Packages - MCP41100-E/SN
click to zoom

MCP130T-315I/SN Details

  • Manufacturer Part Number:

    MCP130T-315I/SN

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    0.150 INCH, PLASTIC, MS-012, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    8

  • Additional Feature:

    MNL RST:N;PW FL IO:N;PRG RST DLY:N;WD:N;WDO:N;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.06 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3.08V

  • Width:

    3.9 mm

MCP130T-315I/SN Frequently Asked Questions (FAQs)

  • Microchip recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common mode choke or ferrite bead to filter out high-frequency noise.
  • The MCP130T-315I/SN requires a bias voltage of 2.7V to 5.5V. Ensure that the bias voltage is stable and within the recommended range. Also, make sure to decouple the bias pin with a 10uF capacitor to reduce noise and ripple.
  • The maximum input voltage that the MCP130T-315I/SN can handle is 6V. Exceeding this voltage may damage the device. It's recommended to use a voltage limiter or a transient voltage suppressor to protect the device from voltage spikes.
  • To troubleshoot issues with the MCP130T-315I/SN, start by checking the input voltage and bias voltage. Ensure that the input and output capacitors are properly sized and placed. Use an oscilloscope to measure the output voltage and check for oscillations. Also, verify that the PCB layout is correct and that there are no noise sources nearby.
  • The MCP130T-315I/SN is rated for operation up to 125°C. However, the device's performance may degrade at high temperatures. Ensure that the device is properly heatsinked and that the operating temperature is within the recommended range.
