MCP14A0304T-E/MNY - Microchip

Description: Microchip Technology MCP14A0304T-E/MNY Dual Low Side MOSFET Power Driver, 3A 8-Pin, TDFN

Download MCP14A0304T-E/MNY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

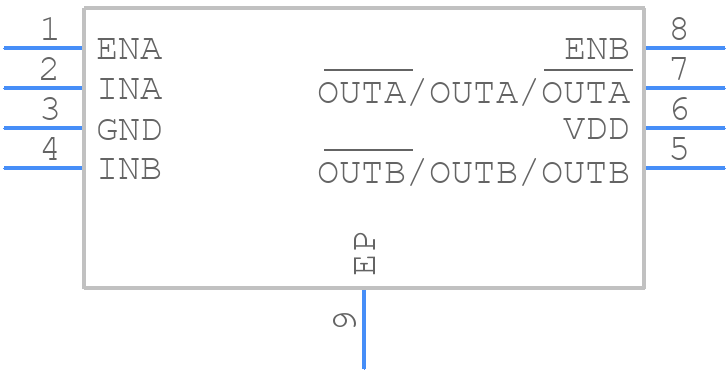

MCP14A0304T-E/MNY - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP14A0304T-E/MNY - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - (MN)8-lead(TDFN)-
click to zoom
3D Models
MCP14A0304T-E/MNY - Microchip - 3D model - Small Outline No-lead - (MN)8-lead(TDFN)-
click to zoom

MCP14A0304T-E/MNY Details

  • Manufacturer Part Number:

    MCP14A0304T-E/MNY

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    TDFN-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Peak Current Limit-Nom:

    3 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    1.1 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.05 µs

  • Turn-on Time:

    0.046 µs

  • Width:

    2 mm

MCP14A0304T-E/MNY Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines.
  • To ensure reliable operation over the full temperature range, follow the recommended operating conditions, use a suitable thermal management strategy, and consider the device's thermal characteristics, such as junction temperature and thermal resistance.
  • Using a different input voltage than the recommended 5V may affect the device's performance, power consumption, and reliability. Consult the datasheet for specific voltage ranges and limitations, and consider the impact on the device's internal voltage regulators and power management.
  • To troubleshoot issues with the device's output voltage regulation, check the input voltage, output load, and PCB layout. Verify that the device is properly configured, and consult the datasheet for troubleshooting guidelines and application notes.
  • The MCP14A0304T-E/MNY has built-in ESD protection and latch-up prevention measures, such as input clamps and output buffers. However, it's still important to follow proper ESD handling and PCB design practices to prevent damage and ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
