MCP14A0601-E/SN - Microchip

Description: Gate Drivers 6.0A Single Inverting MOSFET Driver, SOIC8

Download MCP14A0601-E/SN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

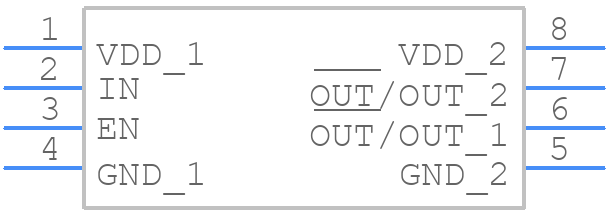

Symbol
MCP14A0601-E/SN - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP14A0601-E/SN - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - MCP14A0601-E/SN__
click to zoom
3D Models
MCP14A0601-E/SN - Microchip - 3D model - Small Outline Packages - MCP14A0601-E/SN__
click to zoom

MCP14A0601-E/SN Details

  • Manufacturer Part Number:

    MCP14A0601-E/SN

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Peak Current Limit-Nom:

    6 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.8 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.05 µs

  • Turn-on Time:

    0.05 µs

  • Width:

    3.9 mm

MCP14A0601-E/SN Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device.
  • The datasheet provides recommended values for external components, but the final choice depends on the specific application and operating conditions. Engineers should consider factors such as frequency, impedance, and power handling when selecting components.
  • The datasheet specifies an operating temperature range of -40°C to +125°C, but it's essential to consider the device's thermal characteristics, such as thermal resistance and power dissipation, to ensure reliable operation in extreme temperatures.
  • Troubleshooting often involves analyzing the circuit's frequency response, impedance, and power supply. Engineers can use tools like oscilloscopes, spectrum analyzers, and simulation software to identify and resolve issues. Microchip also provides application notes and technical support resources to help with troubleshooting.
  • Yes, the MCP14A0601-E/SN is compatible with lead-free soldering processes, but it's essential to follow the recommended soldering profile and temperature guidelines to ensure reliable assembly and operation.
