MCP14A0602-E/SN - Microchip

Description: Gate Drivers 6.0A Single Non-inverting MOSFET Driver, SOIC8

Download MCP14A0602-E/SN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

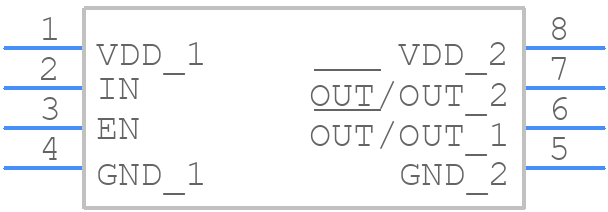

MCP14A0602-E/SN - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP14A0602-E/SN - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8 lead soic-
click to zoom
3D Models
MCP14A0602-E/SN - Microchip - 3D model - Small Outline Packages - 8 lead soic-
click to zoom

MCP14A0602-E/SN Details

  • Manufacturer Part Number:

    MCP14A0602-E/SN

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Peak Current Limit-Nom:

    6 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.8 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.05 µs

  • Turn-on Time:

    0.05 µs

  • Width:

    3.9 mm

MCP14A0602-E/SN Frequently Asked Questions (FAQs)

  • A good PCB layout for the MCP14A0602-E/SN involves keeping the input and output traces short and away from noise sources, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure reliability in high-temperature applications, ensure that the device is operated within its recommended operating temperature range (-40°C to +125°C), use a heat sink if necessary, and follow proper PCB design and assembly guidelines to minimize thermal resistance.
  • The MCP14A0602-E/SN has built-in ESD protection, but it's still important to follow proper ESD handling and storage procedures to prevent damage. Use an ESD wrist strap or mat, and store the devices in anti-static packaging.
  • Yes, the MCP14A0602-E/SN is suitable for high-frequency applications up to 1 GHz. However, ensure that the PCB layout and component selection are optimized for high-frequency operation, and follow proper decoupling and filtering techniques to minimize noise and ringing.
  • To troubleshoot issues with the MCP14A0602-E/SN, start by verifying the power supply voltage and decoupling, checking for proper PCB layout and component selection, and using oscilloscope measurements to identify signal integrity issues. Consult the datasheet and application notes for specific troubleshooting guidelines.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

MCP14A0602-E/SN Overview

Use the download button to access the MCP14A0602-E/SN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP14, or try a keyword search, such as MOSFET Drivers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
