MCP14A0902T-E/MNY - Microchip

Description: Gate Drivers 9.0A Single Non-Inverting MOSFET Driver, Low Threshold with Enable Pin, 2x3 TDFN8

Download MCP14A0902T-E/MNY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

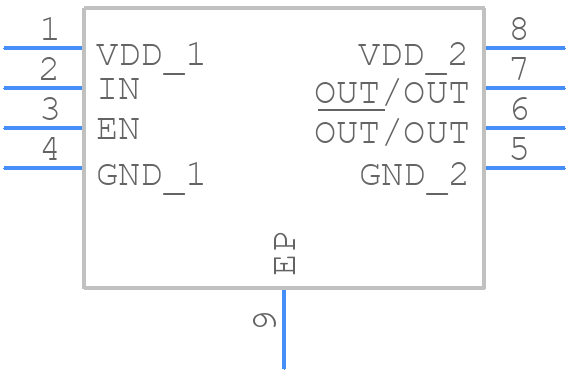

MCP14A0902T-E/MNY - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP14A0902T-E/MNY - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Lead Plastic Dual Flat, No Lead Package (MNY)
click to zoom
3D Models
MCP14A0902T-E/MNY - Microchip - 3D model - Small Outline No-lead - 8-Lead Plastic Dual Flat, No Lead Package (MNY)
click to zoom

MCP14A0902T-E/MNY Details

  • Manufacturer Part Number:

    MCP14A0902T-E/MNY

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    TDFN-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • High Side Driver:

    NO

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Peak Current Limit-Nom:

    9 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.75 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-on Time:

    0.036 µs

  • Width:

    2 mm

MCP14A0902T-E/MNY Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the MCP14A0902T-E/MNY. Ensure a solid ground plane, keep the input and output traces short and separate, and use a decoupling capacitor (e.g., 100nF) close to the device. Refer to Microchip's application notes and layout guidelines for more information.
  • The MCP14A0902T-E/MNY has a thermal pad on the bottom. Ensure good thermal conductivity by using a thermal interface material (e.g., thermal tape or thermal grease) and a heat sink if necessary. Keep the device away from heat sources and ensure good airflow.
  • The MCP14A0902T-E/MNY is specified to operate up to 100 kHz. However, it's possible to operate it at higher frequencies (up to 1 MHz) with some performance degradation. Consult the datasheet and application notes for more information on frequency limitations.
  • Use a voltage regulator to ensure the input voltage stays within the recommended range (4.5V to 18V). Add ESD protection diodes (e.g., 1N4148) on the input and output lines to prevent damage from electrostatic discharge.
  • The recommended input capacitance is 100nF to 1uF, and the recommended output capacitance is 100nF to 10uF. However, the optimal value depends on the specific application and operating frequency. Consult the datasheet and application notes for more information.
