MCP1501-10E/SN - Microchip

Description: MICROCHIP - MCP1501-10E/SN - VOLTAGE REF, SERIES, 1.024V, NSOIC-8

Download MCP1501-10E/SN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

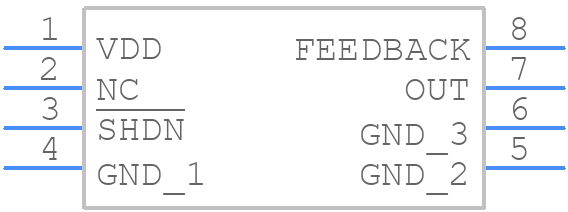

Symbol
MCP1501-10E/SN - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP1501-10E/SN - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead Plastic Small Outline (SN) - Narrow, 3.90 mm (.150 In.) Body [SOIC]
click to zoom
3D Models
MCP1501-10E/SN - Microchip - 3D model - Small Outline Packages - 8-Lead Plastic Small Outline (SN) - Narrow, 3.90 mm (.150 In.) Body [SOIC]
click to zoom

MCP1501-10E/SN Details

  • Manufacturer Part Number:

    MCP1501-10E/SN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2016-05-26

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.03 A

  • Output Voltage-Max:

    1.025 V

  • Output Voltage-Min:

    1.023 V

  • Output Voltage-Nom:

    1.024 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.55 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Surface Mount:

    YES

  • Temp Coef of Voltage-Max:

    50 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.1%

  • Width:

    3.9 mm

MCP1501-10E/SN Frequently Asked Questions (FAQs)

  • A good PCB layout practice is to keep the input and output pins as close as possible to minimize noise. Use a solid ground plane and keep the voltage reference IC away from high-current or high-frequency signals. Additionally, use a low-ESR capacitor (e.g., 10uF) between the VIN and GND pins to filter out noise.
  • To ensure stability and accuracy, use a high-quality, low-ESR capacitor (e.g., 10uF) between the VIN and GND pins. Also, ensure the input voltage is within the recommended range (4.5V to 18V) and the output current is within the specified range (up to 10mA). Additionally, consider using a voltage regulator or a low-dropout regulator to regulate the input voltage.
  • The recommended input voltage range for the MCP1501-10E/SN is 4.5V to 18V. Operating the device outside of this range may affect its accuracy and stability.
  • No, the MCP1501-10E/SN is a voltage reference, not a voltage regulator. It is designed to provide a stable voltage reference, but it does not have the capability to regulate the output voltage. If you need a voltage regulator, consider using a separate voltage regulator IC.
  • The output voltage tolerance of the MCP1501-10E/SN is specified as ±0.5% (max) over the operating temperature range. To calculate the output voltage tolerance, multiply the nominal output voltage (10V) by the tolerance percentage (0.5%). For example, the output voltage tolerance would be ±0.05V (10V x 0.5%).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP1501-10E/SN Overview

Use the download button to access the MCP1501-10E/SN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP15, or try a keyword search, such as Voltage References

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
