Microchip provides a recommended PCB layout in the MCP1501 datasheet, which includes guidelines for component placement, routing, and grounding. Additionally, it's recommended to use a solid ground plane, keep analog and digital signals separate, and use decoupling capacitors to minimize noise.
The MCP1501-18E/SN requires a specific biasing and configuration to operate correctly. Refer to the datasheet for the recommended biasing and configuration for your specific application. Additionally, Microchip provides application notes and design guides that can help with this process.
The maximum power dissipation of the MCP1501-18E/SN is 1.4W. To ensure it doesn't overheat, make sure to provide adequate heat sinking, use a thermally conductive PCB material, and keep the device away from other heat sources. Additionally, ensure that the device is operated within its recommended operating temperature range.
To troubleshoot issues with the MCP1501-18E/SN, start by checking the power supply, biasing, and configuration. Use an oscilloscope to measure the output voltage and current, and check for any signs of oscillation or instability. Refer to the datasheet and application notes for troubleshooting guides and common pitfalls to avoid.
The MCP1501-18E/SN is a commercial-grade device, but Microchip offers industrial-grade and automotive-grade versions of the device that are suitable for high-reliability and high-temperature applications. Refer to the datasheet and Microchip's website for more information on the available grades and their specifications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCP1501-18E/SN Overview

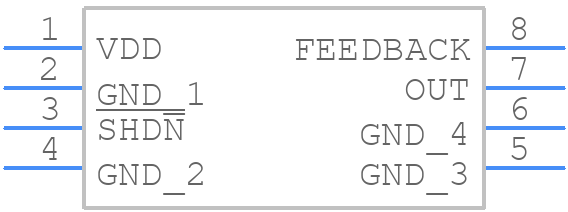

Use the download button to access the MCP1501-18E/SN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP15,
or try a keyword search, such as Voltage References
