A good PCB layout practice is to keep the input and output pins away from each other, use a solid ground plane, and minimize the length of the input and output traces. Additionally, it's recommended to use a bypass capacitor (e.g., 10nF) between the VIN pin and GND to filter out high-frequency noise.
To ensure stability and accuracy, it's essential to follow proper PCB layout guidelines, use a stable input voltage, and minimize thermal gradients. Additionally, consider using a temperature compensation circuit or a thermistor to compensate for temperature-related drift.
The recommended input voltage range for the MCP1501-20E/SN is 4.5V to 18V. Operating outside this range may affect the output voltage accuracy. For optimal performance, it's recommended to operate within the specified input voltage range to ensure the output voltage remains within the specified tolerance.
To protect the MCP1501-20E/SN from overvoltage and reverse voltage conditions, consider adding a voltage clamp or a transient voltage suppressor (TVS) diode between the input pin and GND. Additionally, use a reverse voltage protection diode (e.g., 1N4007) between the input pin and GND to prevent reverse voltage conditions.
The typical output noise of the MCP1501-20E/SN is around 10μVrms. To minimize output noise, use a low-noise input voltage, add a bypass capacitor (e.g., 10nF) between the VIN pin and GND, and consider using a noise-reducing capacitor (e.g., 100nF) between the VOUT pin and GND.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCP1501-20E/SN Overview

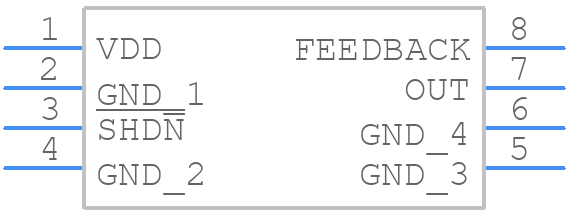

Use the download button to access the MCP1501-20E/SN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP15,
or try a keyword search, such as Voltage References
About Microchip
Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
