MCP1501-30E/SN - Microchip

Description: Voltage Reference 3.000V +/-0.8% SOIC-8 Microchip MCP1501-30E/SN, Fixed Series Voltage Reference 3V, ±0.08 % 5.5 V max., 8-Pin SOIC

Download MCP1501-30E/SN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

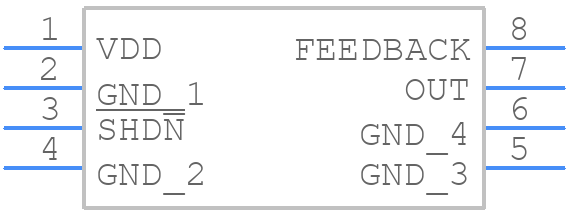

MCP1501-30E/SN - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP1501-30E/SN - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead(SN) SOIC
click to zoom
3D Models
MCP1501-30E/SN - Microchip - 3D model - Small Outline Packages - 8-Lead(SN) SOIC
click to zoom

MCP1501-30E/SN Details

  • Manufacturer Part Number:

    MCP1501-30E/SN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2016-05-26

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.03 A

  • Output Voltage-Max:

    3.003 V

  • Output Voltage-Min:

    2.997 V

  • Output Voltage-Nom:

    3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.55 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3.2 V

  • Surface Mount:

    YES

  • Temp Coef of Voltage-Max:

    50 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.1%

  • Width:

    3.9 mm

MCP1501-30E/SN Frequently Asked Questions (FAQs)

  • A good PCB layout for the MCP1501-30E/SN involves placing the device close to the analog circuitry, using a solid ground plane, and minimizing noise coupling by keeping digital signals away from the device. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure output voltage stability, use a high-quality capacitor (e.g., 10uF ceramic) between the OUT pin and GND, and keep the device away from high-power components and heat sources. Also, consider using a voltage regulator with a low dropout voltage to minimize power supply noise.
  • The recommended input voltage range for the MCP1501-30E/SN is 4.5V to 18V. Operating the device outside this range may affect its performance and accuracy.
  • No, the MCP1501-30E/SN is not designed for high-current applications. It is intended for low-current, high-precision voltage reference applications. If you need a high-current voltage reference, consider using a different device or adding an external amplifier to boost the output current.
  • The output voltage tolerance of the MCP1501-30E/SN can be calculated by adding the initial accuracy (±0.5%) to the temperature coefficient (±10 ppm/°C) multiplied by the operating temperature range. For example, at 25°C, the output voltage tolerance would be ±0.5% + (±10 ppm/°C * 25°C) = ±0.5% + ±0.025% = ±0.525%.
