MCP1501-40E/SN - Microchip

Description: Voltage Reference 4.096V +/-0.8% SOIC-8 Microchip MCP1501-40E/SN, Fixed Series Voltage Reference 4.096V, ±0.08 % 5.5 V max., 8-Pin SOIC

Download MCP1501-40E/SN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

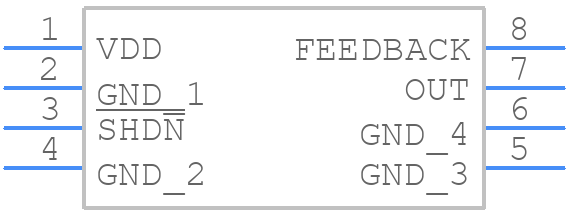

MCP1501-40E/SN - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP1501-40E/SN - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 3.90 mm Body 8-Lead SOIC
click to zoom
3D Models
MCP1501-40E/SN - Microchip - 3D model - Small Outline Packages - 3.90 mm Body 8-Lead SOIC
click to zoom

MCP1501-40E/SN Details

  • Manufacturer Part Number:

    MCP1501-40E/SN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2016-05-26

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.03 A

  • Output Voltage-Max:

    4.1001 V

  • Output Voltage-Min:

    4.0919 V

  • Output Voltage-Nom:

    4.096 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.55 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.3 V

  • Surface Mount:

    YES

  • Temp Coef of Voltage-Max:

    50 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.1%

  • Width:

    3.9 mm

MCP1501-40E/SN Frequently Asked Questions (FAQs)

  • A good PCB layout practice is to keep the input and output pins away from each other, use a solid ground plane, and minimize the length of the input and output traces. Additionally, it's recommended to use a bypass capacitor (e.g., 10nF) between the VIN pin and GND to filter out high-frequency noise.
  • During power-up, the MCP1501-40E/SN has a soft-start feature that gradually ramps up the output voltage to prevent overshoots. During power-down, the output voltage decays rapidly to prevent back-feeding of the output voltage into the input.
  • The MCP1501-40E/SN has a temperature coefficient of ±1 ppm/°C, which means that the output voltage accuracy can vary by ±1 ppm for every 1°C change in temperature. This is relatively low and ensures stable output voltage across a wide temperature range.
  • Yes, the MCP1501-40E/SN can be used in a system with a high-impedance output. However, it's essential to ensure that the output current does not exceed the maximum rating of 10 mA to prevent output voltage droop.
  • The MCP1501-40E/SN has a built-in noise filter that helps to reject high-frequency noise and transients on the input voltage. Additionally, the device has a high power supply rejection ratio (PSRR) of 80 dB, which ensures that the output voltage remains stable even with noisy input voltage.
