MCP1501T-20E/RW - Microchip

Description: Voltage References High Prec Buffered Voltage Reference

Download MCP1501T-20E/RW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

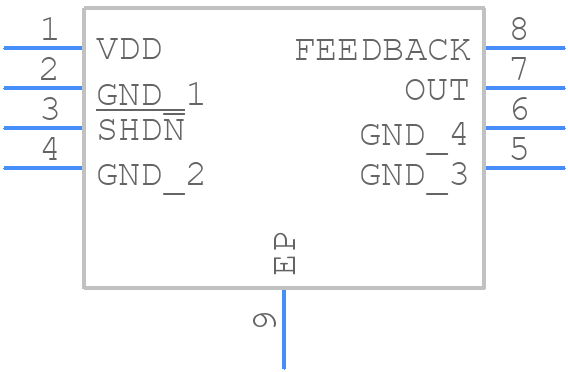

MCP1501T-20E/RW - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP1501T-20E/RW - Microchip PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Lead Very, Very Thin Plastic Dual Flat, No Lead Package (RW)-2x2 mm Body [WDFN]
click to zoom
3D Models
MCP1501T-20E/RW - Microchip - 3D model - Small Outline No-lead - 8-Lead Very, Very Thin Plastic Dual Flat, No Lead Package (RW)-2x2 mm Body [WDFN]
click to zoom

MCP1501T-20E/RW Details

  • Manufacturer Part Number:

    MCP1501T-20E/RW

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    WDFN-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2018-04-12

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.03 A

  • Output Voltage-Max:

    2.05 V

  • Output Voltage-Min:

    2.046 V

  • Output Voltage-Nom:

    2.048 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.55 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.25 V

  • Surface Mount:

    YES

  • Temp Coef of Voltage-Max:

    50 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.1%

  • Width:

    2 mm

MCP1501T-20E/RW Frequently Asked Questions (FAQs)

  • A good PCB layout practice is to keep the input and output pins away from each other, use a solid ground plane, and minimize the distance between the voltage reference and the decoupling capacitors. Additionally, use a low-ESR capacitor (e.g., ceramic or film capacitor) for C1 and C2, and place them as close as possible to the device.
  • To ensure stability and accuracy, make sure to follow the recommended operating conditions, including the input voltage range, output current, and temperature range. Also, use a stable input voltage source, and consider adding a low-pass filter to reduce noise and ripple.
  • The recommended input capacitor value is 10uF to 22uF, and a low-ESR capacitor (e.g., ceramic or film capacitor) is recommended. The capacitor should be placed as close as possible to the VIN pin to minimize noise and ensure stability.
  • The output voltage tolerance can be calculated by adding the initial voltage tolerance (±0.5% for the MCP1501T-20E/RW) to the temperature coefficient (±2 ppm/°C). This will give you the total output voltage tolerance over the operating temperature range.
  • No, the MCP1501T-20E/RW is a voltage reference, not a voltage regulator. It is designed to provide a stable voltage reference, but it does not have the capability to regulate the output voltage based on changes in input voltage or output current.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP1501T-20E/RW Overview

Use the download button to access the MCP1501T-20E/RW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP15, or try a keyword search, such as Voltage References
