MCP1501T-20E/SN - Microchip

Description: Series Voltage Reference IC Fixed 2.048V V ±0.1% 20 mA 8-SOIC , 2.25V ~ 5.5V , -40°C ~ 125°C (TA)

Download MCP1501T-20E/SN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

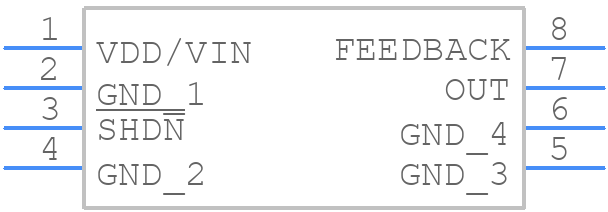

MCP1501T-20E/SN - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP1501T-20E/SN - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead Plastic Small Outline (SN) - Narrow, 3.90 mm (.150 In.) Body [SOIC]_2026-1.1
click to zoom
3D Models
MCP1501T-20E/SN - Microchip - 3D model - Small Outline Packages - 8-Lead Plastic Small Outline (SN) - Narrow, 3.90 mm (.150 In.) Body [SOIC]_2026-1.1
click to zoom

MCP1501T-20E/SN Details

  • Manufacturer Part Number:

    MCP1501T-20E/SN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.03 A

  • Output Voltage-Max:

    2.05 V

  • Output Voltage-Min:

    2.046 V

  • Output Voltage-Nom:

    2.048 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.55 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.25 V

  • Surface Mount:

    YES

  • Temp Coef of Voltage-Max:

    50 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.1%

  • Width:

    3.9 mm

MCP1501T-20E/SN Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MCP1501T-20E/SN evaluation board user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • Microchip provides application notes and design guides that provide guidance on biasing and configuring the MCP1501T-20E/SN for specific applications, such as audio amplifiers, filters, and impedance matching networks.
  • The MCP1501T-20E/SN has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow, use a heat sink if necessary, and follow proper PCB design and layout guidelines to minimize thermal resistance.
  • Microchip provides troubleshooting guides and application notes that provide guidance on identifying and resolving common issues with the MCP1501T-20E/SN, including oscillation and instability.
  • The MCP1501T-20E/SN has built-in ESD protection, but it's still important to follow proper ESD handling precautions, such as using an ESD wrist strap, mat, or workstation, and handling the device by the body or pins to prevent damage.
