MCP1501T-30E/SN - Microchip

Description: Voltage References High Prec Buffered Voltage Reference

Download MCP1501T-30E/SN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

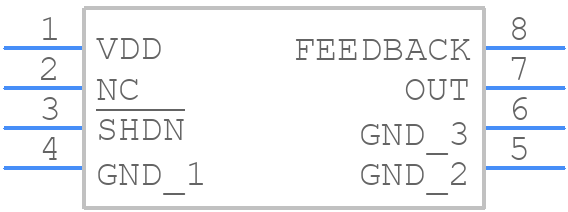

Symbol
MCP1501T-30E/SN - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP1501T-30E/SN - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - SN
click to zoom
3D Models
MCP1501T-30E/SN - Microchip - 3D model - Small Outline Packages - SN
click to zoom

MCP1501T-30E/SN Details

  • Manufacturer Part Number:

    MCP1501T-30E/SN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.03 A

  • Output Voltage-Max:

    3.003 V

  • Output Voltage-Min:

    2.997 V

  • Output Voltage-Nom:

    3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    0.55 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3.2 V

  • Surface Mount:

    YES

  • Temp Coef of Voltage-Max:

    50 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.1%

  • Width:

    3.9 mm

MCP1501T-30E/SN Frequently Asked Questions (FAQs)

  • Microchip provides a recommended PCB layout in the MCP1501T-30E/SN evaluation board user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • Microchip provides a detailed application note (AN1343) that provides guidance on biasing and configuring the MCP1501T-30E/SN for various applications, including voltage regulators, audio amplifiers, and sensor interfaces.
  • The maximum power dissipation of the MCP1501T-30E/SN is dependent on the package type and thermal resistance. The datasheet provides a formula to calculate the maximum power dissipation based on the junction temperature, thermal resistance, and ambient temperature.
  • The MCP1501T-30E/SN has built-in overvoltage protection (OVP) and overcurrent protection (OCP) features. Additionally, external protection circuits can be implemented using voltage regulators, current limiters, and fuses to ensure the device operates within its specified limits.
  • The recommended operating temperature range for the MCP1501T-30E/SN is -40°C to +125°C. Operating the device outside this range may affect its performance, including increased noise, reduced bandwidth, and decreased accuracy.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP1501T-30E/SN Overview

Use the download button to access the MCP1501T-30E/SN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP15, or try a keyword search, such as Voltage References

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
