MCP1632-BAE/MS - Microchip

Description: Microchip MCP1632-BAE/MS, PWM Controller 600 KHz 8-Pin, MSOP

Download MCP1632-BAE/MS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

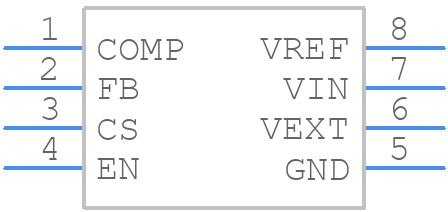

Symbol
MCP1632-BAE/MS - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP1632-BAE/MS - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - MSOP
click to zoom
3D Models
MCP1632-BAE/MS - Microchip - 3D model - Small Outline Packages - MSOP
click to zoom

MCP1632-BAE/MS Details

  • Manufacturer Part Number:

    MCP1632-BAE/MS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    MSOP-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • Additional Feature:

    ADJUSTABLE SOFT START

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT/VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    SOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    690 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3 mm

MCP1632-BAE/MS Frequently Asked Questions (FAQs)

  • The recommended input capacitor value is 10uF to 22uF, with a voltage rating of at least 2x the input voltage. This capacitor helps to filter out noise and ripple on the input voltage.
  • To ensure stable operation in a noisy environment, it is recommended to use a low-ESR input capacitor, add a 10nF to 100nF capacitor between the VIN and GND pins, and use a shielded cable for the input voltage. Additionally, consider adding a ferrite bead or common-mode choke to filter out high-frequency noise.
  • The maximum output current capability of the MCP1632 is 1.5A. However, the output current should be derated based on the ambient temperature and the input voltage. Refer to the datasheet for the output current derating curve.
  • The output voltage of the MCP1632 can be adjusted by using a resistive divider network between the VOUT pin and the GND pin. The resistors should be chosen such that the output voltage is within the specified range of 2.5V to 5.5V.
  • The EN (Enable) pin is used to enable or disable the regulator. When the EN pin is pulled high, the regulator is enabled and the output voltage is regulated. When the EN pin is pulled low, the regulator is disabled and the output voltage is turned off.
