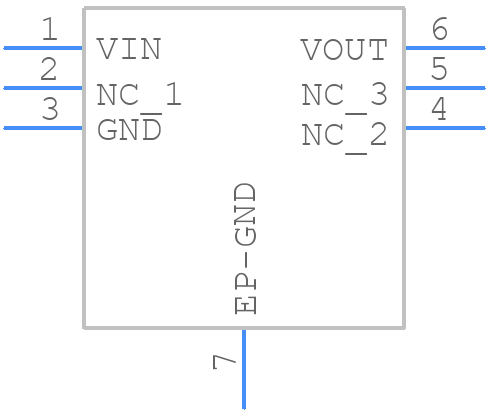

MCP1700T-3002E/MAY - Microchip

MCP1700T-3002E/MAY Details

• Manufacturer Part Number:

  MCP1700T-3002E/MAY

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Pin Count:

  6

• Manufacturer Package Code:

  DFN-6

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  8 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  13

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.35 V

• Dropout Voltage1-Nom:

  0.178 V

• Input Voltage Absolute-Max:

  6.5 V

• Input Voltage-Max:

  6 V

• Input Voltage-Min:

  4 V

• JESD-30 Code:

  R-PDSO-N6

• JESD-609 Code:

  e4

• Length:

  2 mm

• Line Regulation-Max:

  0.06%

• Load Regulation-Max:

  0.045%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  6

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  0.25 A

• Output Voltage1-Max:

  3.09 V

• Output Voltage1-Min:

  2.91 V

• Output Voltage1-Nom:

  3 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC6,.08,25

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR

• Qualification Status:

  Not Qualified

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  0.9 mm

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Voltage Tolerance-Max:

  3%

• Width:

  2 mm
