MCP1703T-4002E/MC - Microchip

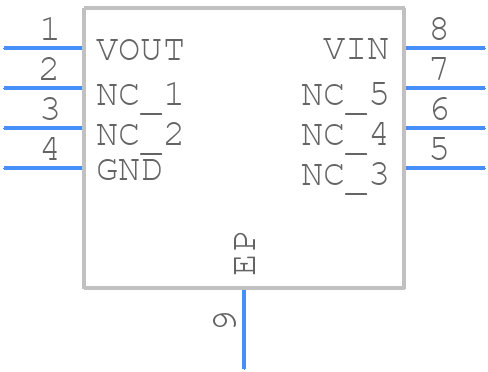

MCP1703T-4002E/MC Details

• Manufacturer Part Number:

  MCP1703T-4002E/MC

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  DFN

• Package Description:

  2 X 3 MM, 0.90 MM HEIGHT, PLASTIC, DFN-8

• Pin Count:

  8

• Manufacturer Package Code:

  DFN-8

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Factory Lead Time:

  7 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  9

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  0.725 V

• Dropout Voltage1-Nom:

  0.525 V

• Input Voltage Absolute-Max:

  18 V

• Input Voltage-Max:

  16 V

• Input Voltage-Min:

  4.805 V

• JESD-30 Code:

  R-PDSO-N8

• JESD-609 Code:

  e3

• Length:

  3 mm

• Line Regulation-Max:

  0.13434%

• Load Regulation-Max:

  0.1%

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  8

• Operating Temperature TJ-Max:

  125 °C

• Operating Temperature TJ-Min:

  -40 °C

• Output Current1-Max:

  0.25 A

• Output Voltage1-Max:

  4.08 V

• Output Voltage1-Min:

  3.92 V

• Output Voltage1-Nom:

  4 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC8,.12,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Screening Level:

  TS 16949

• Seated Height-Max:

  1 mm

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  40

• Voltage Tolerance-Max:

  2%

• Width:

  2 mm
