Microchip provides a recommended PCB layout in the MCP1791T datasheet, which includes guidelines for component placement, thermal vias, and copper pours. Additionally, it's recommended to follow general high-frequency PCB design practices, such as minimizing trace lengths and using a solid ground plane.
To ensure stable and accurate output voltage, it's essential to follow proper layout and decoupling practices. Use a high-quality output capacitor with low ESR, and decouple the input and output pins with ceramic capacitors. Additionally, ensure the input voltage is stable and within the recommended range, and use a low-noise input source.
The maximum output current of the MCP1791T-3302E/DC is 2A. The device's thermal performance is affected by the output current, as higher currents generate more heat. To ensure reliable operation, it's essential to follow the recommended thermal design guidelines, including using a heat sink or thermal pad, and ensuring good airflow around the device.
To protect the device from input voltage transients and surges, use a TVS (Transient Voltage Suppressor) diode or a voltage clamp circuit at the input. Additionally, ensure the input capacitor is rated for the maximum expected input voltage, and consider adding a fuse or PTC (Positive Temperature Coefficient) thermistor for overcurrent protection.
The recommended input voltage range for the MCP1791T-3302E/DC is 2.7V to 5.5V. Operating the device outside this range may affect its performance, including reduced output voltage accuracy, increased noise, and decreased efficiency. Ensure the input voltage is within the recommended range to ensure optimal performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MCP1791T-3302E/DC Overview

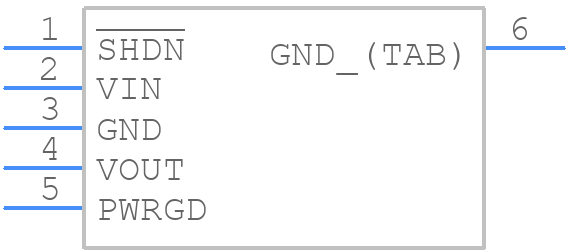

Use the download button to access the MCP1791T-3302E/DC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP17,
or try a keyword search, such as Linear Regulator ICs
