MCP19119-E/MQ - Microchip

Description: Microchip MCP19119-E/MQ, PWM Current Mode Controller, 30 mA, 1.6 MHz, 4.5 → 40 V, 28-Pin QFN

Download MCP19119-E/MQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

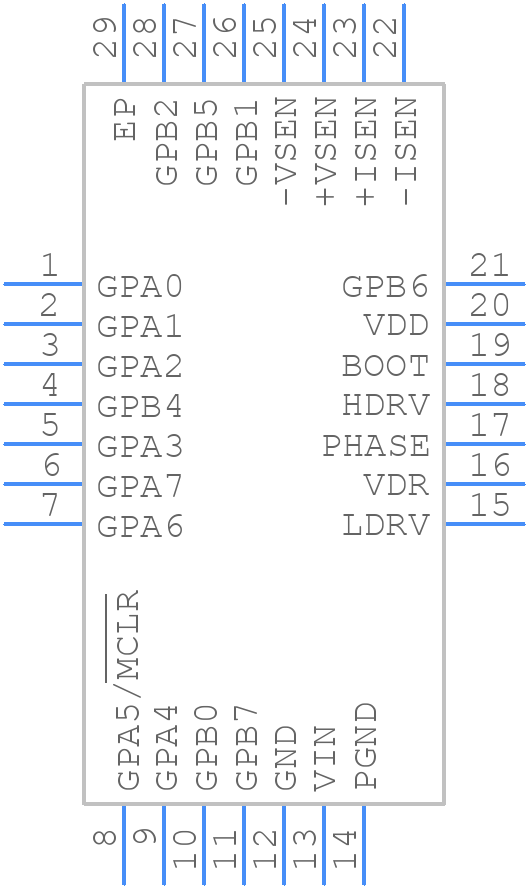

MCP19119-E/MQ - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP19119-E/MQ - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 28-Lead Plastic Quad Flat, No Lead Package (MQ)
click to zoom
3D Models
MCP19119-E/MQ - Microchip - 3D model - Quad Flat No-Lead - 28-Lead Plastic Quad Flat, No Lead Package (MQ)
click to zoom

MCP19119-E/MQ Details

  • Manufacturer Part Number:

    MCP19119-E/MQ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    QFN-28

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    14

  • JESD-30 Code:

    S-PQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.20SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    40 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    SWITCHING CONTROLLER

MCP19119-E/MQ Frequently Asked Questions (FAQs)

  • The maximum output current of the MCP19119-E/MQ is 1.5A per channel, with a total maximum output current of 3A for both channels.
  • The MCP19119-E/MQ can be configured for synchronous or asynchronous operation by setting the SYNC pin high or low, respectively. Synchronous operation allows for simultaneous switching of both channels, while asynchronous operation allows for independent switching of each channel.
  • The EN (Enable) pin is used to enable or disable the output stages of the MCP19119-E/MQ. When the EN pin is high, the output stages are enabled, and when it is low, the output stages are disabled.
  • The switching frequency of the MCP19119-E/MQ can be adjusted by connecting a resistor (RT) between the RT pin and ground. The switching frequency is inversely proportional to the value of RT.
  • The FLT (Fault) pin is an open-drain output that indicates when a fault condition occurs, such as overcurrent or overtemperature. The FLT pin can be connected to a microcontroller or other logic circuit to detect and respond to fault conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP19119-E/MQ Overview

Use the download button to access the MCP19119-E/MQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP19, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
