MCP2021A-330E/SN - Microchip

Description: LIN Transceivers LIN Transceiver + 3.3V LDO

Download MCP2021A-330E/SN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

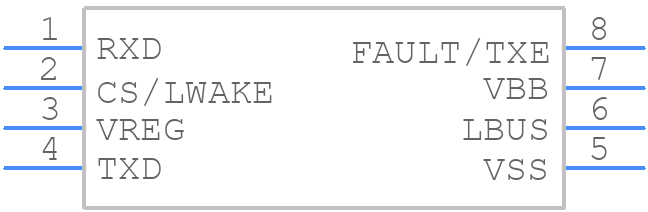

Symbol
MCP2021A-330E/SN - Microchip - PCB symbol
click to zoom
PCB Footprints
MCP2021A-330E/SN - Microchip PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead(SN) SOIC
click to zoom
3D Models
MCP2021A-330E/SN - Microchip - 3D model - Small Outline Packages - 8-Lead(SN) SOIC
click to zoom

MCP2021A-330E/SN Details

  • Manufacturer Part Number:

    MCP2021A-330E/SN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOIC-8

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Transceivers:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

MCP2021A-330E/SN Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MCP2021A-330E/SN is -40°C to +125°C.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF and a maximum equivalent series resistance (ESR) of 1 ohm.
  • The recommended input capacitor value for the MCP2021A-330E/SN is 1uF to 10uF, with a voltage rating of at least 10V.
  • Yes, the MCP2021A-330E/SN is suitable for high-reliability applications, as it is built with a robust design and has undergone rigorous testing to ensure its reliability.
  • The power dissipation of the MCP2021A-330E/SN can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MCP2021A-330E/SN Overview

Use the download button to access the MCP2021A-330E/SN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MCP20, or try a keyword search, such as Network Interfaces
