MCP2036-I/P footprint, schematic symbol and 3D model by Microchip

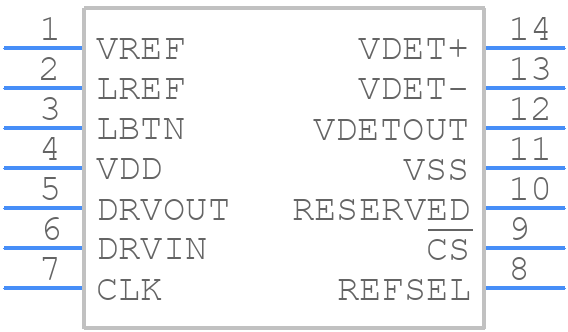

Symbol

click to zoom

PCB Footprints

MCP2036-I/P - Microchip PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 14-Lead PDIP (P) - 300 mil Body [PDIP]

click to zoom

3D Models

MCP2036-I/P - Microchip - 3D model - Dual-In-Line Packages - 14-Lead PDIP (P) - 300 mil Body [PDIP]

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MCP2036-I/P
Part Number MCP2036-I/P
Manufacturer Microchip
Pin Count 14
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - 14-Lead PDIP (P) - 300 mil Body [PDIP]
Released Date Oct 10, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MCP2036-I/P Details

Manufacturer Part Number:
MCP2036-I/P
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
DIP
Package Description:
0.300 INCH, PLASTIC, DIP-14
Pin Count:
14
Manufacturer Package Code:
PDIP-14
Country Of Origin:
Thailand
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Factory Lead Time:
6 Weeks
Manufacturer:
Microchip Technology Inc
YTEOL:
8
Consumer IC Type:
CONSUMER CIRCUIT
JESD-30 Code:
R-PDIP-T14
JESD-609 Code:
e3
Length:
19.05 mm
Number of Functions:
1
Number of Terminals:
14
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
DIP
Package Equivalence Code:
DIP14,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Not Qualified
Screening Level:
TS 16949
Seated Height-Max:
5.334 mm
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
2.7 V
Surface Mount:
NO
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Width:
7.62 mm

MCP2036-I/P Frequently Asked Questions (FAQs)

The maximum operating frequency of the MCP2036-I/P is 100 kHz, but it can be operated at higher frequencies with reduced performance.
The MCP2036-I/P can be configured for differential or pseudo-differential mode by setting the appropriate bits in the Configuration Register (Register 0x00). Refer to the datasheet for specific bit settings.
The VREF pin on the MCP2036-I/P is used to set the reference voltage for the analog-to-digital converter (ADC). It can be connected to an external voltage reference or to the internal voltage reference (VDD) through a resistor divider network.
The MCP2036-I/P has an internal calibration mechanism that can be initiated by writing to the Calibration Register (Register 0x01). The calibration process adjusts the ADC's offset and gain to optimize performance.
The power consumption of the MCP2036-I/P in sleep mode is typically around 1 μA, making it suitable for battery-powered applications.

Trust Checks

Community Provided

System Verified

Community Approved

MCP2036-I/P Overview

Use the download button to access the MCP2036-I/P schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MCP20, or try a keyword search, such as Other Consumer ICs

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
